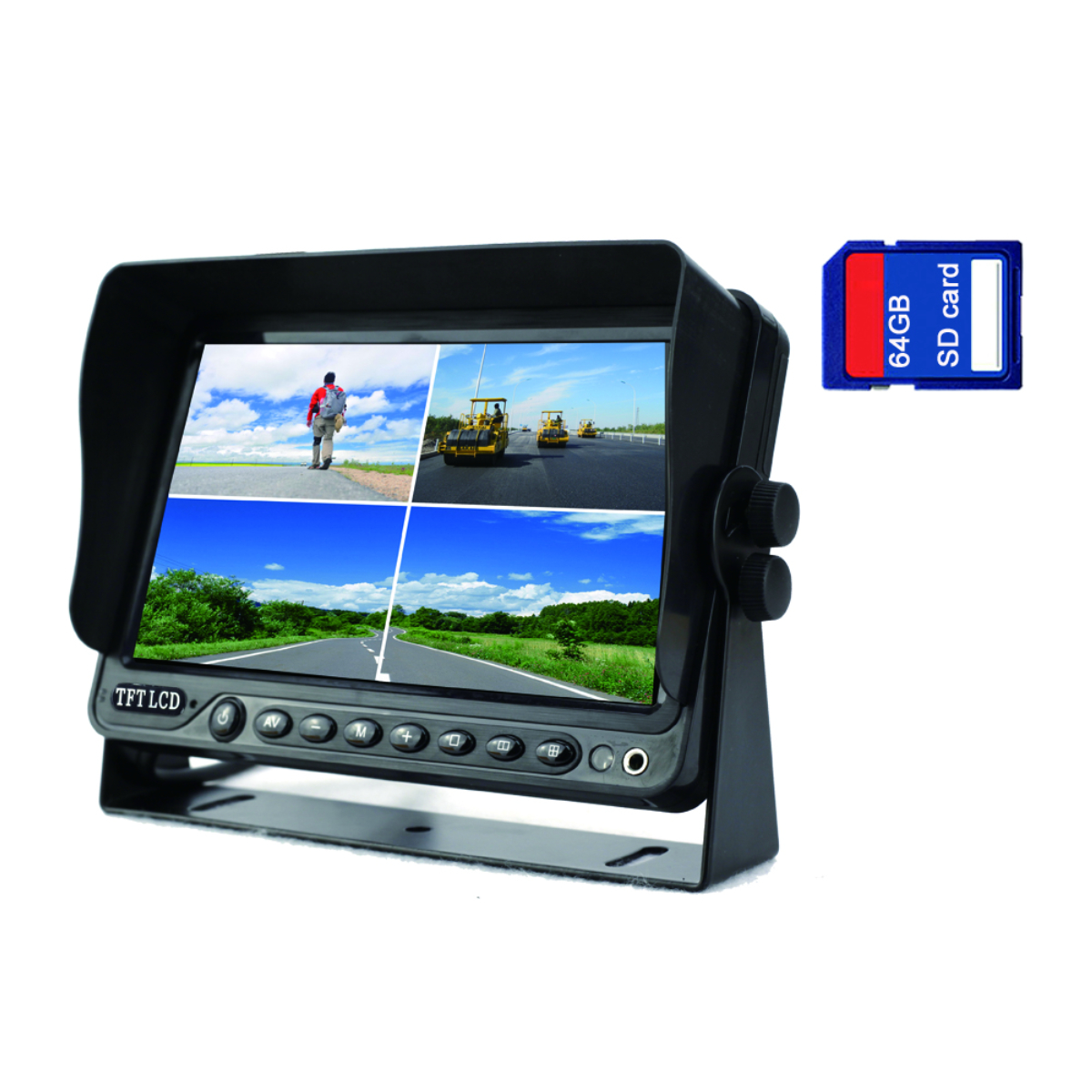

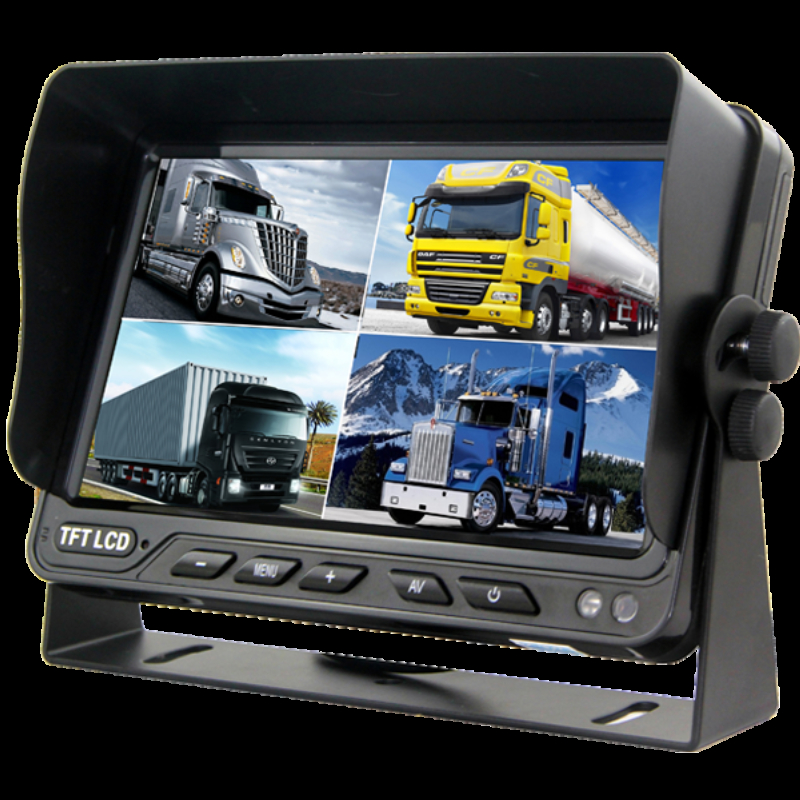

9 inch quad HD monitor with DVR function

9 inch quad HD monitor with DVR function

9 inch monitor
support max 256G SD card recording
4 channel quad display
high resolution
Product description: Eastyle professional 9-inch quad vehicle monitor manufacturer in China. 4-channel split screen display with DVR recording for simultaneous multi-camera monitoring. Supports 256G SD card. Ideal for bus
INQUIRY

Model: ES-9006

AV,Video record function

The pictures stored in monitor, can be backuped to SD card, maximum 64G,
Supporting maximum 81hours continuous recording.
AV2/AV3/AV4/AV5 with trigger wire, once trigger wire activated, image automatically switchover to corresponding Camera
Screen Size: 7/9inch digital screen
Resolution: 800*RGB*480
System: PAL/NTSC system
Brightness: 450cd/
Contrast: 500:1
Power Supply: DC10V~DC36V
Power: 5W
Video: 5 video inputs,4 trigger wires
Language: Multiple languages
Operation Mode: keystroke and remote controller
Demension: 7inch:(L)177X(W)141X(H)21mm/ 9inch:(L)228*(W)154*(T)27mm
Features: Wiredrawing; With sunshade; With light sensor;The keystroke with LED light;Three kinds of bracket optional;With reverse polarity protection;Supply DC12V power to five cameras

、

Installation

This monitor is suitable to install on all kinds of vehicles like bus, truck, car, taxi,ambulance, van, tanker, tow vehicles, trailer...

Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days

Warranty: 1 year

Lifetime maintenance and repair

Please don't hesitate to send us inquiry.
Contact: Nick Huang
Email: [email protected]
Skype: nicky_hdj
Whatsapp/Mobile: +8613265680731

Professional 9-inch quad HD vehicle monitor from Eastyle, China. Features 4-channel split screen display, 800*480 high resolution and DVR recording function. Enables simultaneous monitoring of multiple camera feeds.

Universal compatibility with all major MDVR and camera systems. Perfect for buses, trucks and commercial fleet surveillance. OEM customization supported. Contact us for competitive factory pricing.
