Product Description

1,It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
2,It applies full digital control, flexible programming, drive line compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.
3,The maximum resolution to support 1080P@30fps
4,Supporting dual stream and HD capture
5,Supporting variety of HD Platform connection
6,It can be used on car surveillance.DC11V-DC18V
7,Weatherproof design, high die-cast aluminum casing,work temperature:-35℃~+55℃.,with sun-shield housing and wiper

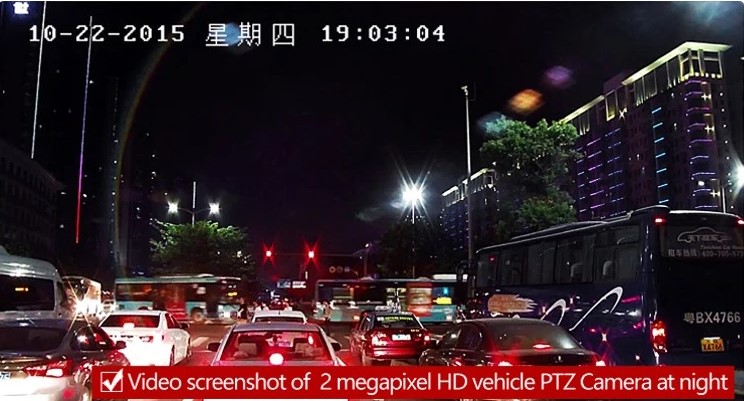

With infrared LED range up to 100 meters ,it could catching image promptly at night.
8,360°Continuously rotation ,upward angle +90°~ -90°,no blind spot.
9,Pan preset speed 100°/S,tilt preset speed 80°/S,with 256 preset positions,6 cruising tracks.
10,Can be set to auto-cruise, horizontal scanning, the camera mode and displays the title.
11,PTZ coordinates, the lens magnification display function.

12,Car-surveillance shock absorber for optional.

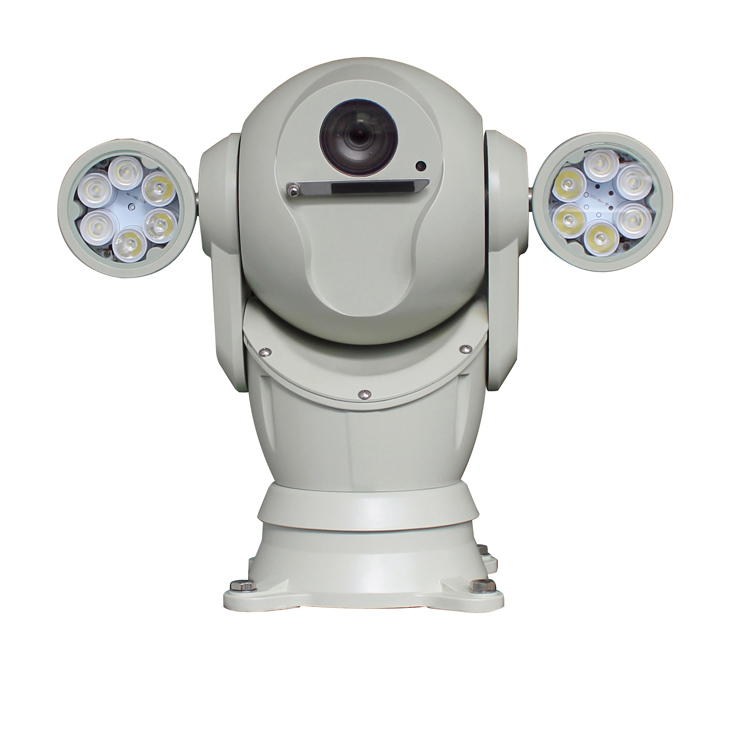

Part NO.	ES-PTZ120
Pan preset speed	120°/S(manual contro0°～80°/S）
Tilt preset speed	60°/S（manual control 0°～40°/S）
Pan range	360°
Tilt range	＋90°～－90°
Electric machinery	stepping motor （worm and gear)
Preset positions	256 Preset positions
Control Way	RS485(Ntwork and SDI support RS485 and RJ45
Baud rate	2400Bps~19200Bps
Control protocol	Pelco-D/Pelco-P
Chroma	850nm
Distance	120m
Audio input/output	Support
Alarm Input/ Output	Support
Operating temperature	－35°C~＋65°C
IP Grade	IP66
Power Supply	DC10.5V~DC16V(6A)
Weight	3KG（net weight）
IP(Network)Chipset
Model	20IP	30IP
Imaging sensor	1/2.8inch “Exmor”CMOS	1/2.8inch“Exmor”CMOS
Effective pixels	2.1 mega pixels	3 mega pixels
Lens	20X optical zoom f=4.7 -94.0mm （18.20.30X）
Min.illumination	0.095 lUx （F1.6，ICR open）
Frame rate	25FPS & 30FPS
Double stream	H.265/H.264
SDK Docking	standard ONVIF protocols,Support SDK two development
SDI/AHD Chipset
Model	SDI	AHD
Imaging sensor	1/2.5inch CMOS	1/4inch CMOS
Effective pixels	30X 3 mega pixels(According to chipset)	36X 2.0 mega pixels(According to chipset)
Frame rate	60FPS & 30FPS	30FPS
