4 Channel 1080P Mobile DVR with GPS 4G WiFi - Professional Vehicle Surveillance Solution

Product Overview

The Eastyle 4 Channel 1080P Mobile DVR is a compact yet powerful vehicle surveillance solution designed for smaller vehicles and fleets that require reliable video monitoring without the need for 8 channels. As a professional MDVR factory with over 15 years of experience, Eastyle has engineered this 4CH MDVR to deliver exceptional performance, durability, and value for taxis, vans, delivery cars, and small to medium-sized fleets.

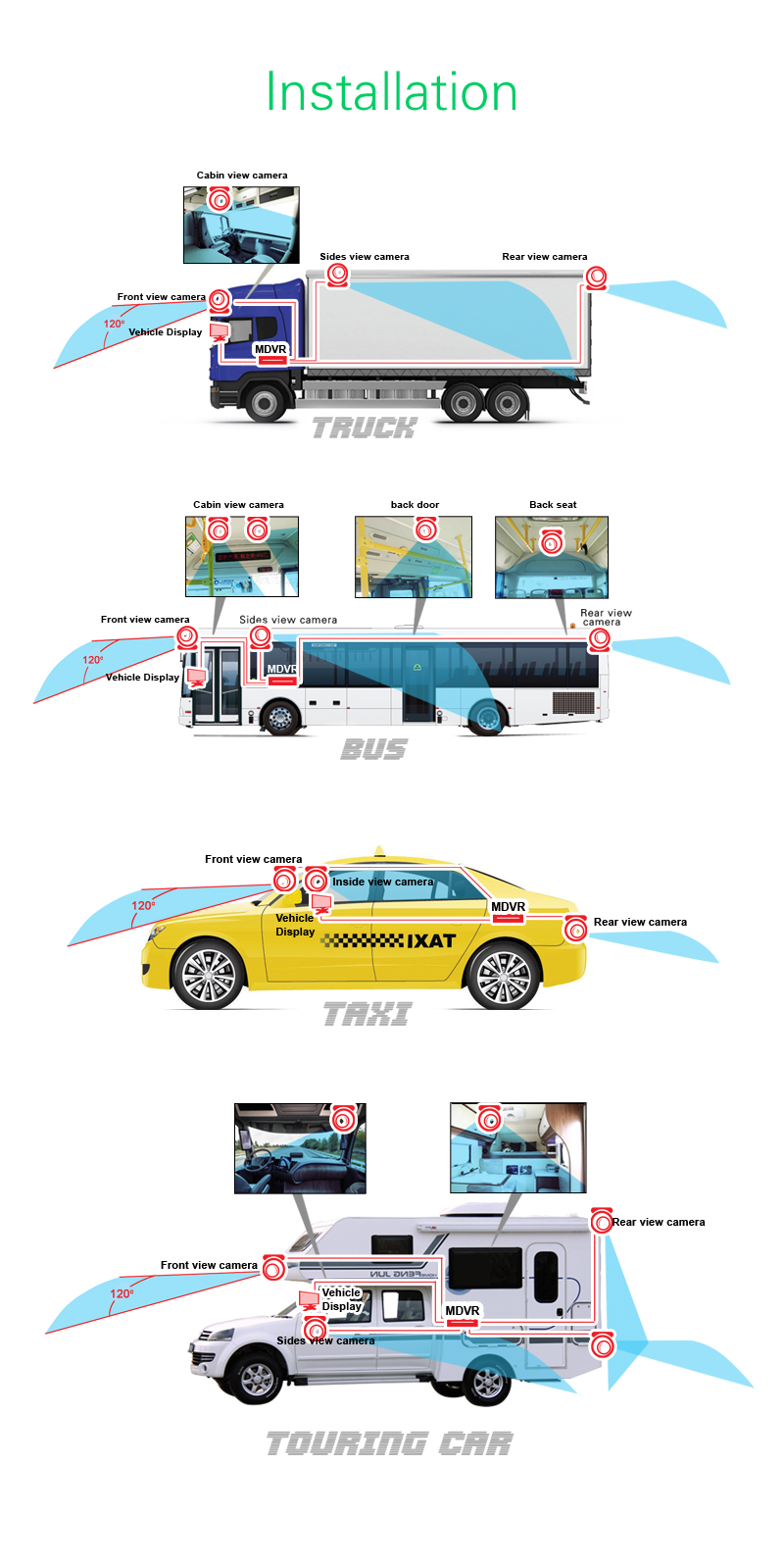

This 4 channel mobile DVR provides complete video coverage for essential Camera positions including front view, rear view, and two side views, giving you comprehensive monitoring of your vehicle and its surroundings. Built with industrial-grade components and a rugged design, it withstands the constant vibration, temperature extremes, and power fluctuations common in daily vehicle operation.

Whether you manage a taxi fleet, delivery service, small logistics company, or personal security needs, this 4CH MDVR delivers the reliability and features you need at a competitive factory-direct price.

Key Features

4 Channel 1080P Full HD Recording: All 4 channels support simultaneous 1080P high-definition video recording, capturing clear, detailed footage from every connected camera. The high resolution ensures you can identify license plates, road signs, and important incident details with excellent clarity. Using advanced H.265 video compression, the system saves 50% more storage space compared to H.264 while maintaining the same video quality.

Built-in GPS Tracking: The integrated GPS module provides accurate real-time vehicle location tracking, route history recording, and speed monitoring. Fleet managers can view exact vehicle positions on digital maps, track driving routes, and monitor driver speed behavior through our CMSV6/CMSV7 fleet management platform. This data is invaluable for route optimization, driver performance management, and verifying service delivery.

4G and WiFi Connectivity: Stay connected to your vehicles anywhere with 4G LTE cellular network support. The 4G feature enables real-time live video streaming, remote monitoring, and instant alarm notifications from any location with cellular coverage. WiFi connectivity allows for convenient bulk video download and system updates when vehicles return to the depot, saving cellular data costs and time.

G-Sensor and Alarm Functions: The built-in 3-axis G-sensor detects sudden acceleration, hard braking, sharp turns, and impacts, automatically triggering event recording and alarm notifications. Multiple alarm inputs support connection to door sensors, panic buttons, reverse triggers, and other vehicle sensors. When an alarm event occurs, the MDVR automatically saves the relevant video footage with pre-event and post-event recording and can send instant notifications to the monitoring center.

Two-Way Audio Communication: The MDVR supports clear two-way audio intercom between the monitoring center and vehicle driver. Fleet managers can communicate directly with drivers to provide instructions, respond to emergencies, or conduct check-ins. Audio recording is supported on all channels, capturing sound along with video for complete event documentation.

Flexible Storage Options: The system supports both SD card storage (up to 256GB per card, dual card slots) and optional hard disk drive storage, providing flexible options for different recording duration requirements. With automatic loop recording when storage is full, the system ensures uninterrupted recording without the need for manual intervention or storage management.

Wide Voltage Power Protection: Designed specifically for vehicle use, the MDVR supports wide voltage input (8-36V) compatible with both 12V cars and 24V commercial vehicles. Built-in power protection features include overvoltage protection, undervoltage protection, short circuit protection, and delayed shutdown to ensure stable operation even during engine startup and power fluctuations.

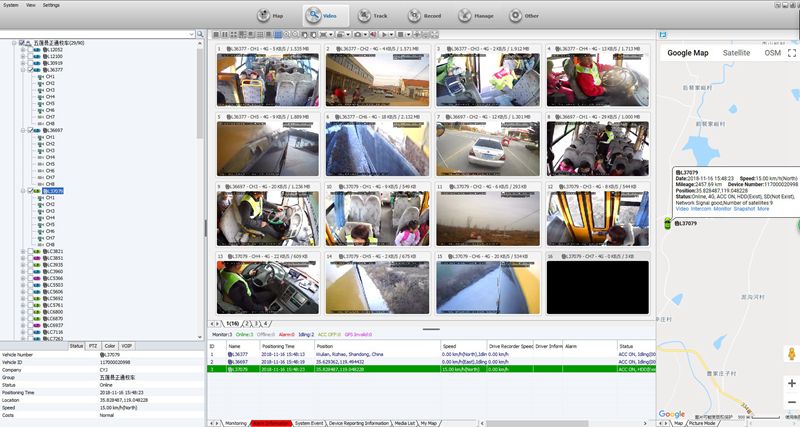

CMSV6/CMSV7 Platform Compatibility: This 4 channel MDVR is fully compatible with the industry-standard CMSV6 and CMSV7 centralized monitoring platforms. The platform software supports management of unlimited vehicles, live multi-channel viewing, video playback, GPS tracking, alarm management, and detailed data reporting. We also provide free mobile apps for iOS and Android devices, as well as web-based access for convenient monitoring from any internet-connected device.

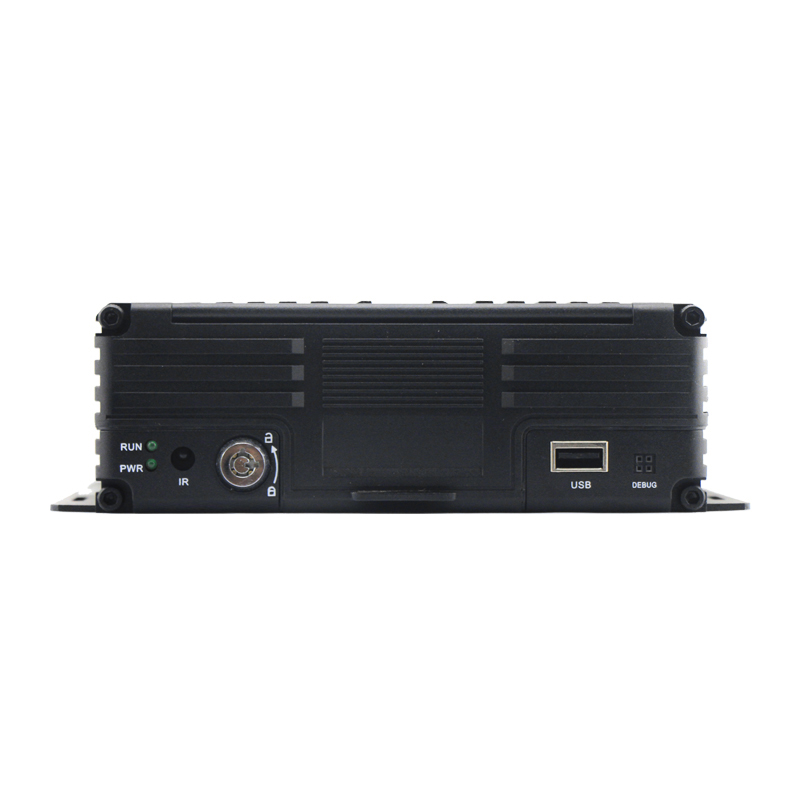

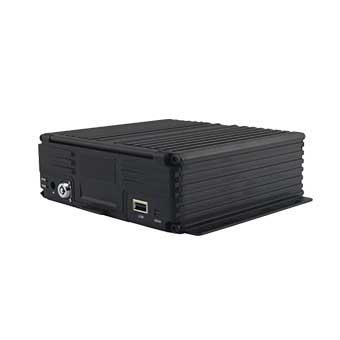

Compact Size for Easy Installation: The compact form factor makes this 4CH MDVR easy to install even in vehicles with limited space, such as taxis and small vans. It can be mounted under the dashboard, under seats, or in other convenient locations without taking up valuable passenger or cargo space.

Technical Specifications

Video Input: 4 channels AHD 1080P
Video Output: 1 channel VGA, 1 channel CVBS
Audio Input: 4 channels
Audio Output: 1 channel
Video Compression: H.265/H.264
Video Resolution: 1080P/720P/D1
Recording Mode: Continuous, alarm, scheduled, motion detection
Storage: 2 x SD cards (up to 256GB each), optional HDD
GPS: Built-in high-sensitivity GPS module
Communication: 4G LTE, WiFi 802.11b/g/n

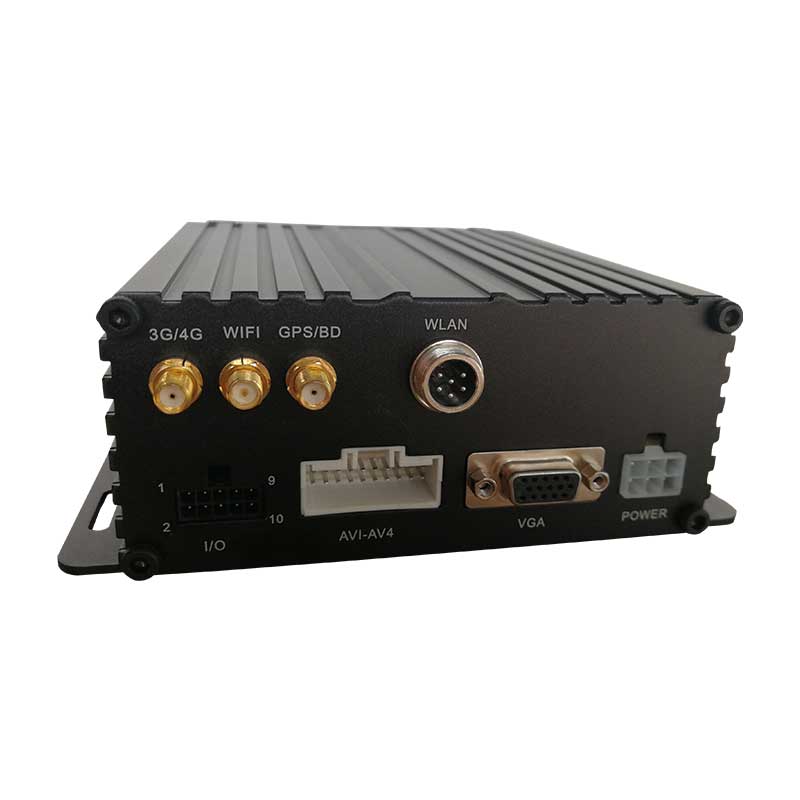

Interfaces: RJ45 Ethernet, USB 2.0, RS232, multiple alarm I/O
Power Supply: DC 8V-36V wide voltage
Power Consumption: Less than 10W (without storage device)
Operating Temperature: -20°C to +70°C
Dimensions: 120 x 100 x 35 mm (compact size)

Application Scenarios

The 4 channel 1080P Mobile DVR is perfectly suited for:

Taxis and Ride-Hailing Vehicles: Monitor driver and passenger safety, record incidents, and provide evidence in case of disputes or accidents.

Delivery Vans and Cars: Protect cargo, monitor driver behavior, and verify deliveries with front, rear, and side camera coverage.

Small Logistics Fleets: Track vehicles, monitor routes, and improve operational efficiency for small delivery and logistics operations.

Personal Vehicles and Executive Cars: Provide security and monitoring for personal vehicles, executive transport, and VIP protection.

Service Vehicles: Ideal for plumbers, electricians, and other service vehicles to monitor work and provide security.

Rental Vehicles: Protect rental assets and monitor vehicle use for car rental companies.

Law Enforcement and Security: Suitable for police cars, security patrol vehicles, and other law enforcement applications.

Why Choose Eastyle 4 Channel MDVR?

Factory Direct Pricing: As the original manufacturer, we offer competitive factory-direct pricing with no middleman markup, providing excellent value for money.

Proven Reliability: Every unit undergoes 24+ hours of continuous aging testing before shipment to ensure reliable performance in demanding vehicle environments.

International Certifications: Our products are CE, FCC, and RoHS certified, meeting international quality and safety standards for sale in Europe, North America, and other global markets.

15+ Years Industry Experience: With over 15 years focused exclusively on vehicle surveillance technology, we have the expertise to provide reliable, well-engineered solutions.

Comprehensive Technical Support: Our experienced technical team provides pre-sales consultation, installation guidance, troubleshooting assistance, and ongoing after-sales support.

OEM/ODM Services Available: We offer customization services including logo printing, custom firmware, language localization, and hardware modifications to meet your specific requirements.

Complete Solution Ecosystem: We provide not just the MDVR, but also compatible cameras, monitors, cables, platform software, and mobile apps for a complete, integrated surveillance solution.

Fast and Reliable Delivery: With 5 production lines and 20,000 units monthly production capacity, we can fulfill both small and large orders quickly and efficiently.

Contact Eastyle today to learn more about our 4 Channel 1080P Mobile DVR and how we can provide the perfect vehicle surveillance solution for your taxis, vans, or small fleet. Our sales team is ready to provide professional consultation, product recommendations, and competitive factory pricing for your project.

Please don't hesitate to send us inquiry.
