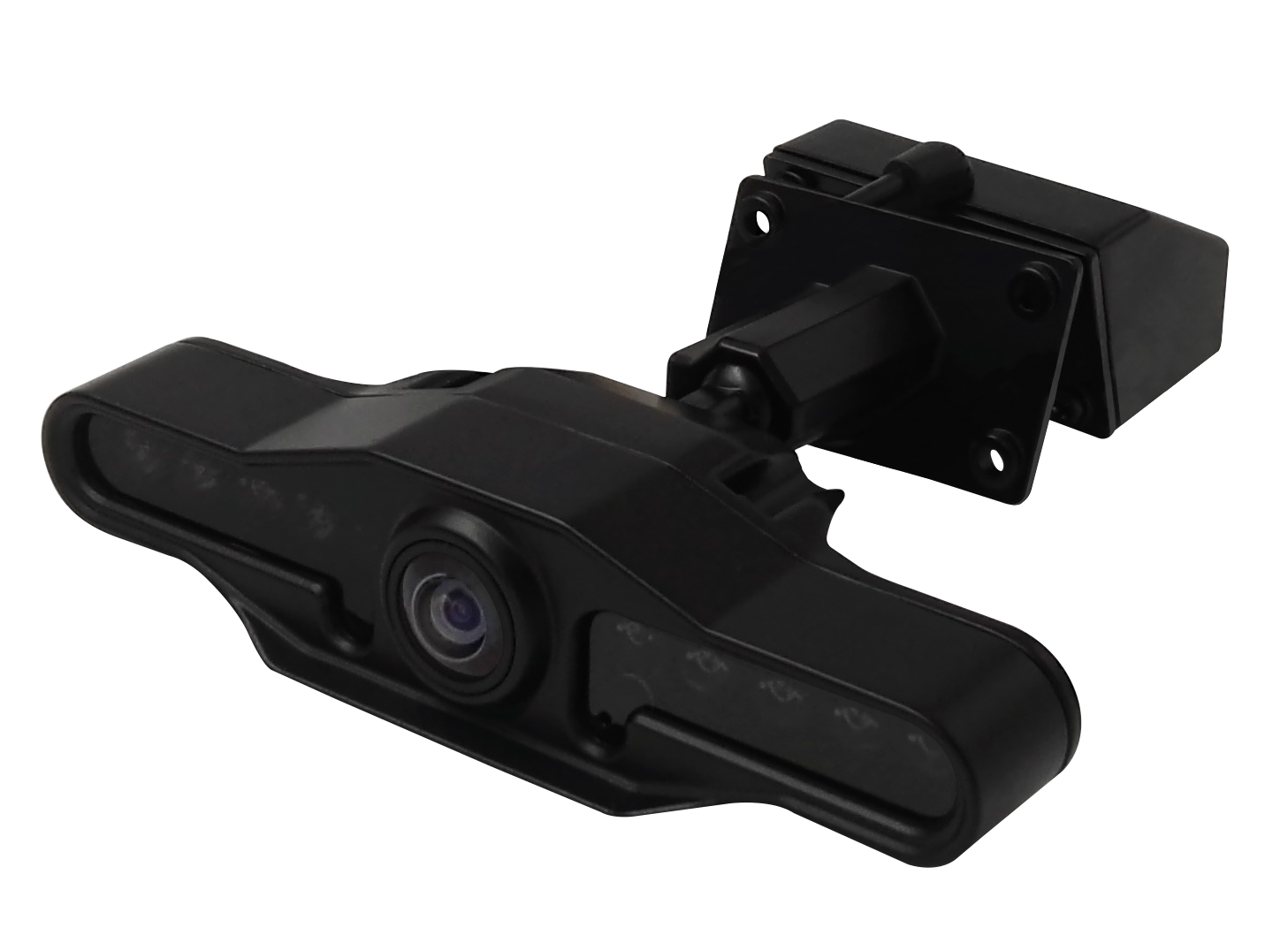

2.0MP/1.3MP 1080P Full HD dual Camera with IR night vision -Model: EC120-AHD

2.0MP/1.3MP 1080P Full HD dual Camera with IR night vision -Model: EC120-AHD

1080P FULL HD
Can be mounted on windshield
dual camera
with IR night vision
Product description: 2.0MP/1.3MP 1080P Full HD dual Camera with IR night vision for bus/truck/taxi/car
INQUIRY

2.0MP/1.3MP 1080P Full HD dual Camera with IR night vision for taxi/car

Model: EC120-AHD

Features:

2.0 MegaPixels (1080P) or 1.3 MegaPixels (960P)

Can be mounted on Windshield

Suitable for Taxi/Car/Ambulance

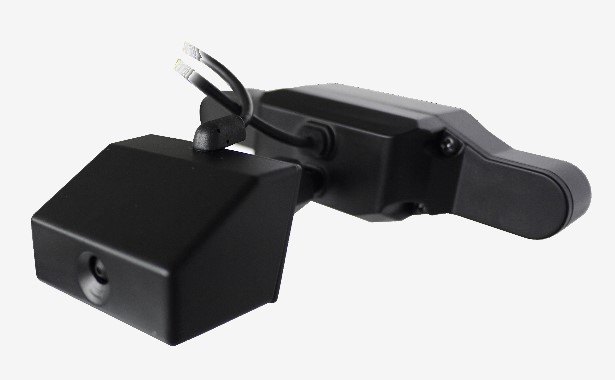

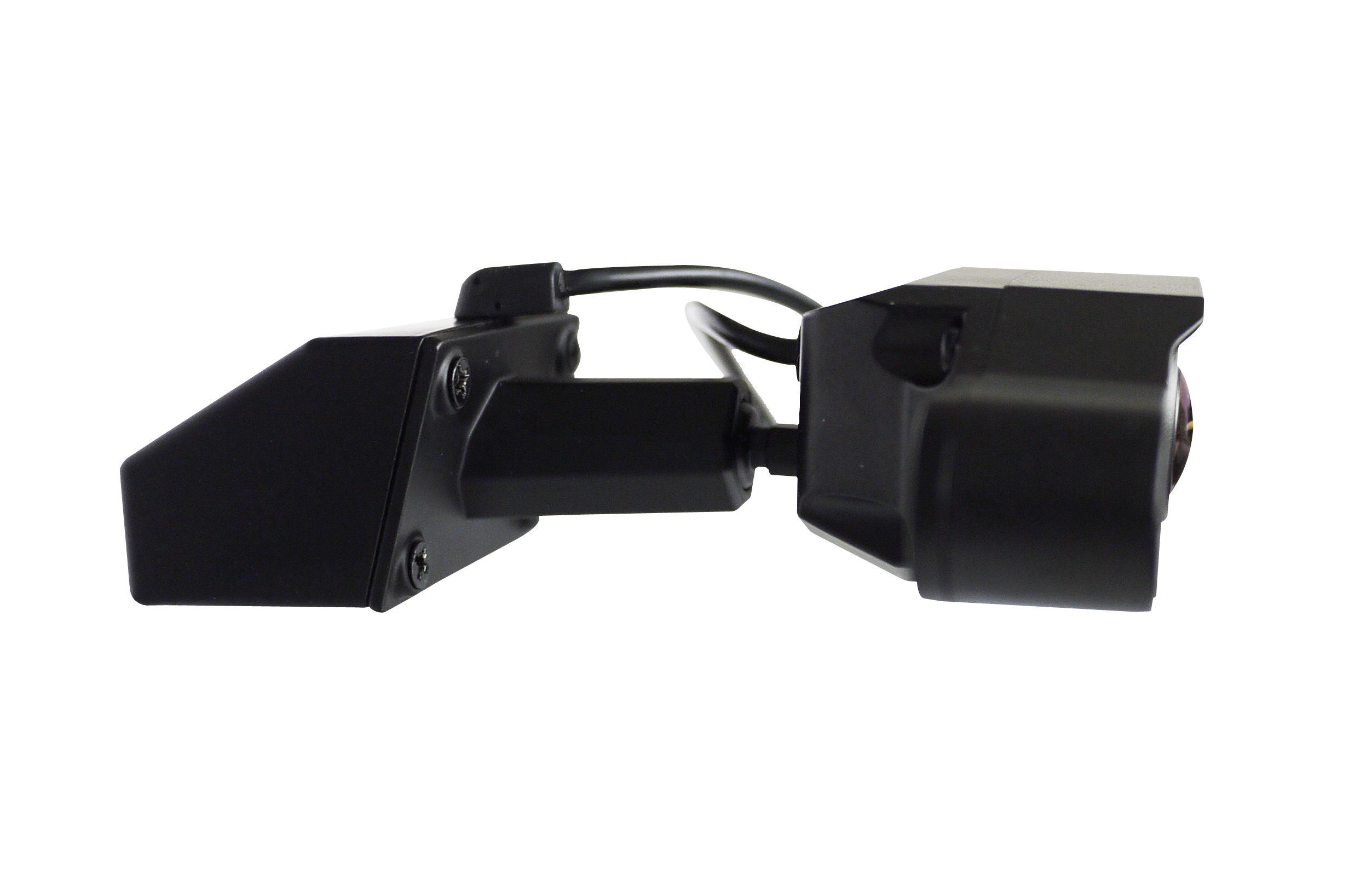

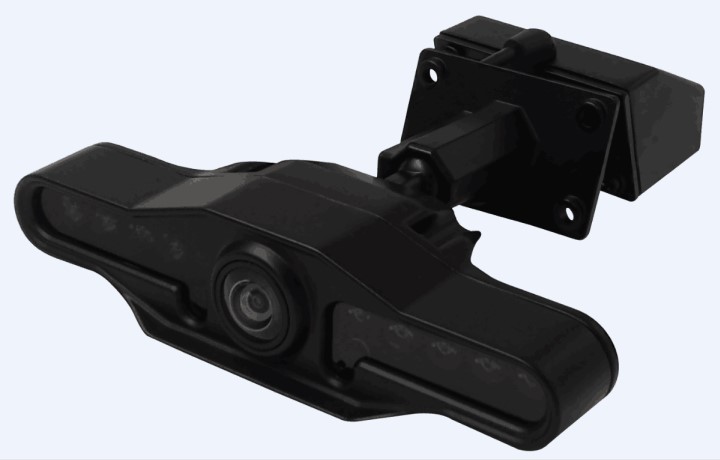

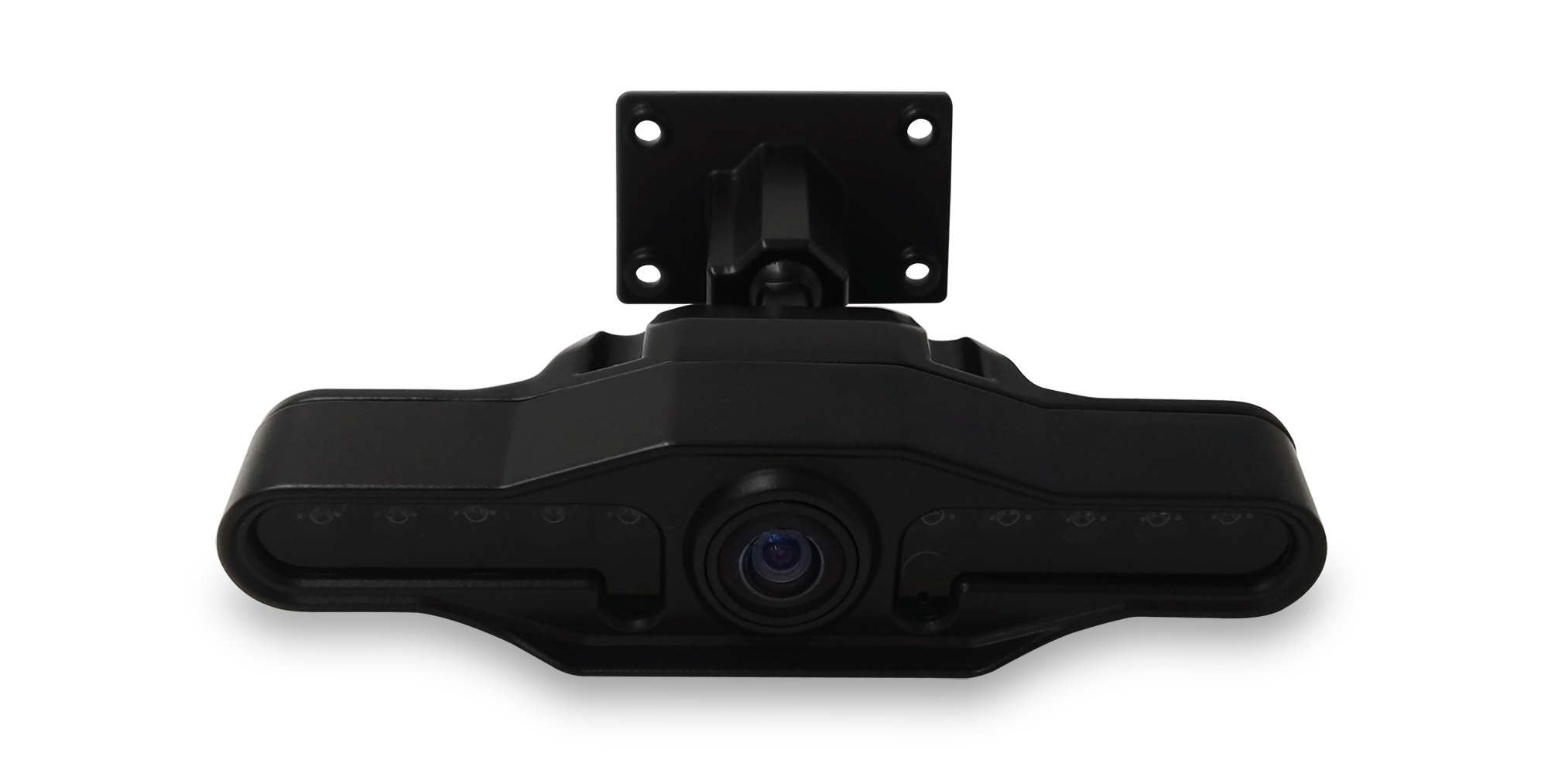

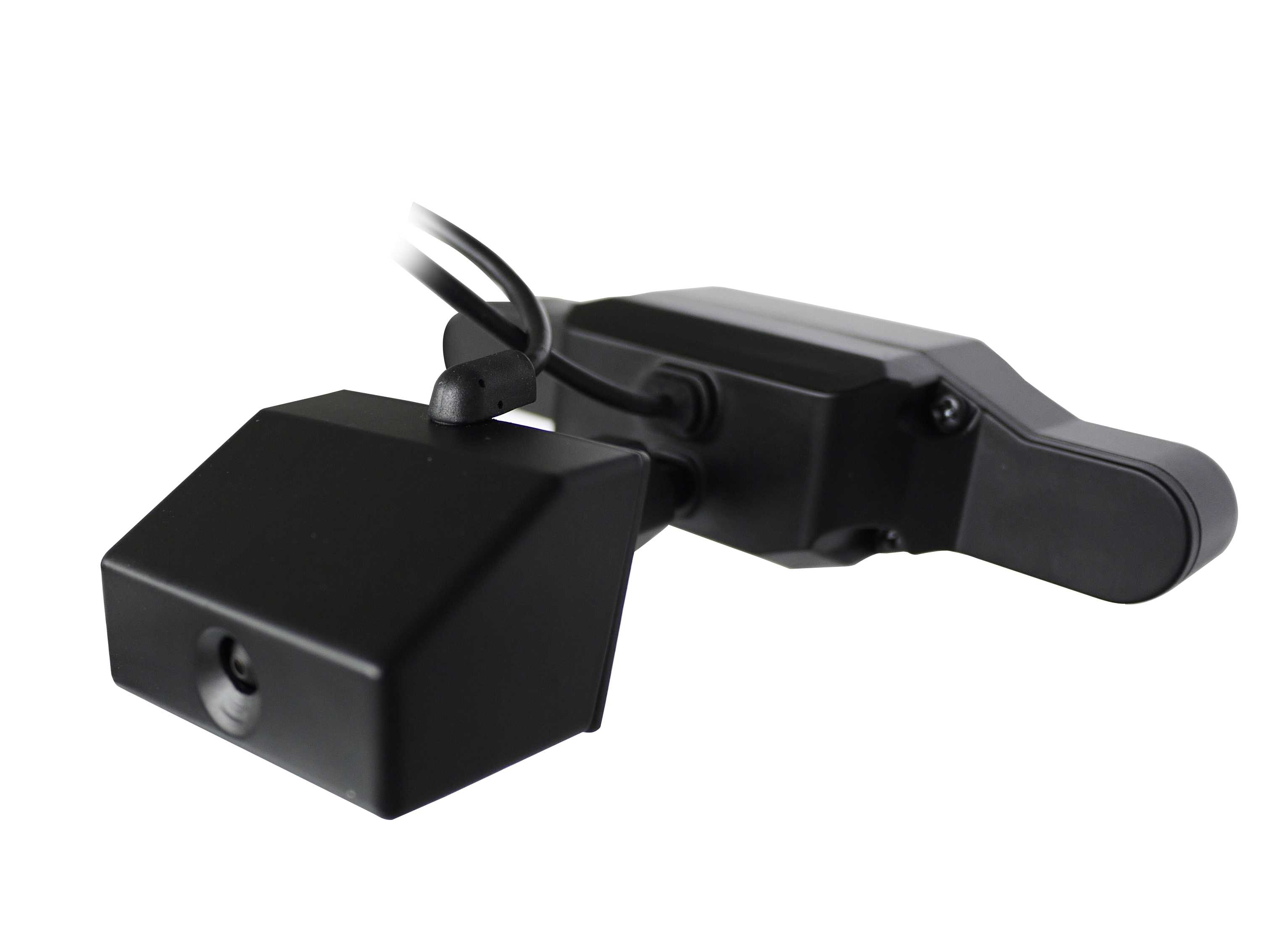

Composed by front and rear cameras

Rear camera with IR and audio

• 1/2.9 inch High Resolution CMOS Sensor
• 2 IN 1 Camera, AHD (default) output Support
• NTSC / PAL Avaliable
• Auto White Balance
• Board Lens Support , 2.1 mm / 3.7mm…
• DWDR Support / DNR Support
• Largest angle over 120° with 2.1mm Lens
• Small case with good waterproof
• 3Axis Good installation methods
• Power Supply : DC12V±10%

A: Photoresistor (IR ON when it’s dark).

B: Microphone hole(audio)

C: Screw of Adjust angle

D: CMOS lens(Front road view)

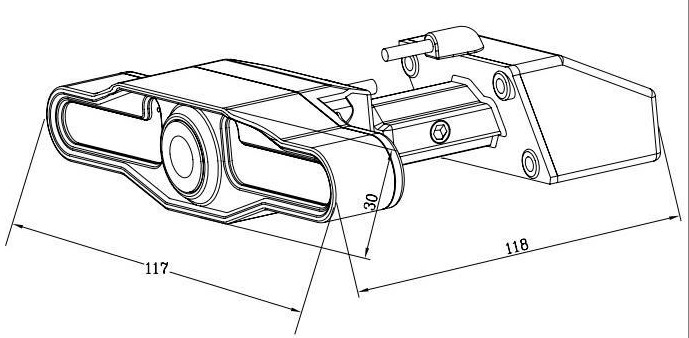

Product size:

Front Cam: 50x38x30mm

Back Cam: 126x30x100mm

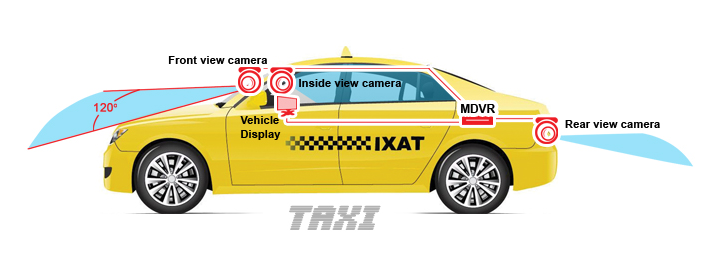

Installation

This dual cameras are suitable to install on car, taxi,ambulance, van...

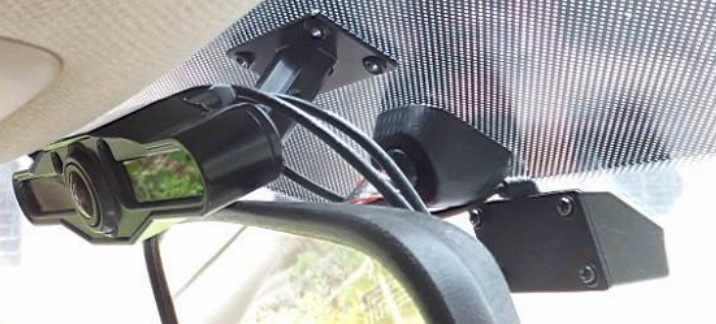

Install on windshield

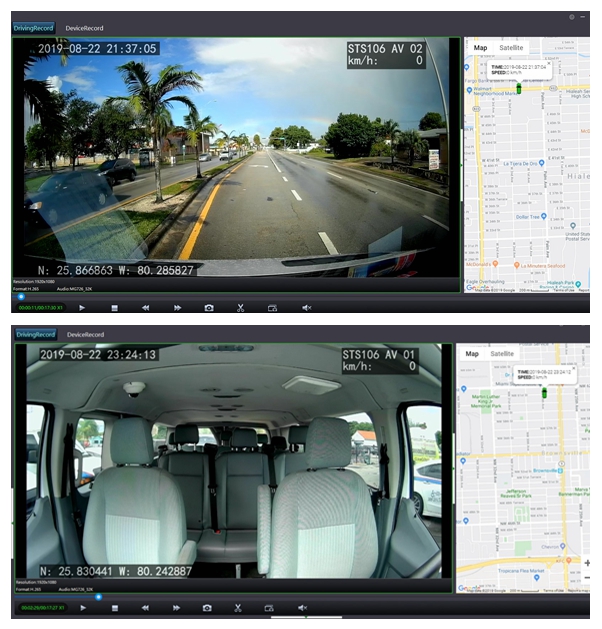

1080P video Playback image quality

Specification

SENSOR	1/3" 1.3 or 2.0 Mega PIXELPLUS sensor
Synchronization	Internal synchronization
Scanning	2:1 Interlace
Horizontal Resolution	960P/1080P
Horizontal angle	120 degree &85 degree
IR LED	10pcsΦ8 IR 940nm LED
IR Distance	3m
Mini CMOS	High-resolution CMOS, 2.8mm lens
Minimum Illumination	0Lux( IR ON )
Gamma modification	0.45
Gain control	Auto
White Balance	Auto
Electronic shutter	1/60(1/50)~1/100,000 sec
	1.0Vp-p Composite Video
Video output	Output,75ohm
Lens	2.1mm & 2.8mm
S/N Ratio	More than 48dB
Operational Voltage	DC12V
Operational Temperature	(- 30℃~+70℃)
Application use	taxi, bus, car inside use.
Body size	126x30x100mm
Audio	Yes
