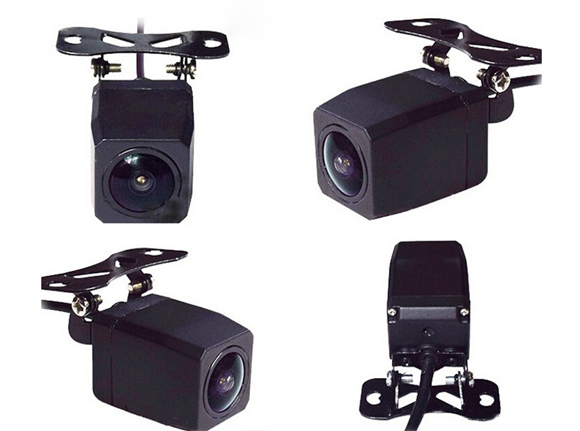

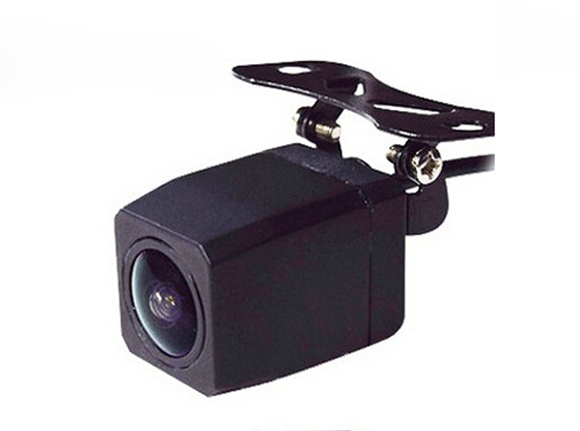

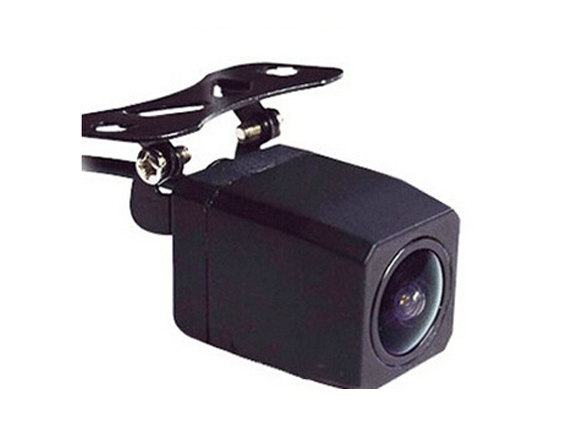

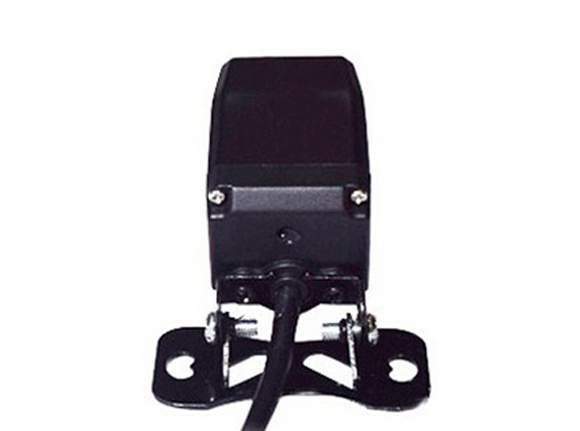

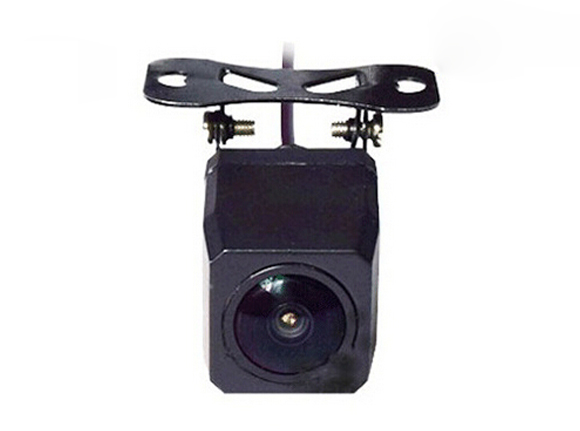

1080P/960P 170 degree wide view mini Vehicle Camera -Model: EC258-AHD

  • 1.3mp/2.0mp AHD
  • Waterproof IP68/IP69K
  • Easy installation
  • With IR night vision
  • Product description: 1.3MP/2.0MP AHD Vehicle Camera for bus/truck/tanker 1080P 170 degree wide view mini Vehicle Camera Waterproof IP68/IP69K
  • INQUIRY

1080P 170 degree wide view mini Vehicle Camera Waterproof IP68/IP69K


Model: EC772-AHD

Camera High Waterproof Level IP68/IP69K

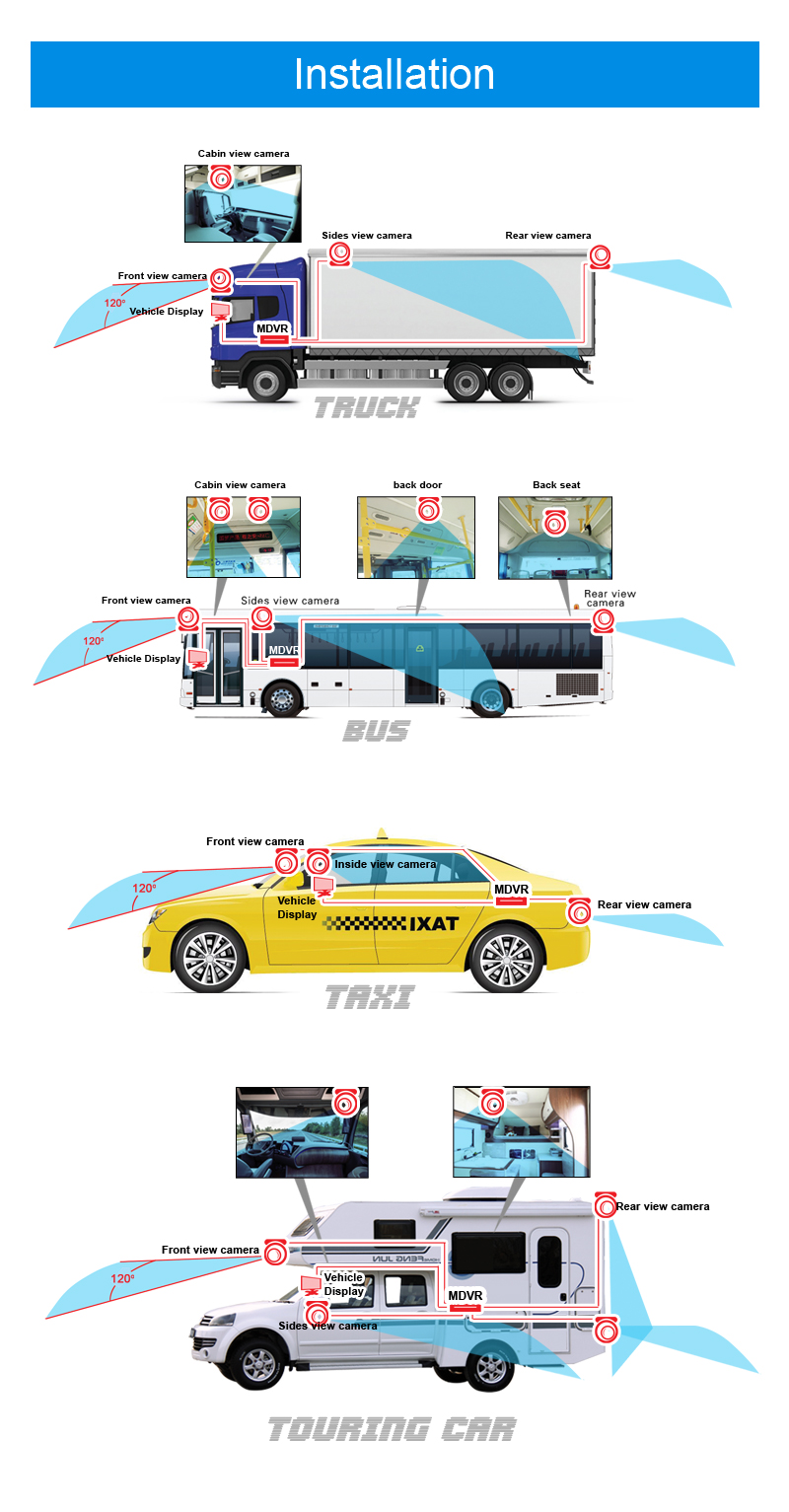

Installation

This camera is suitable to install on all kinds of vehicles like bus, truck, car, taxi,ambulance, van, tanker, tow vehicles, trailer...

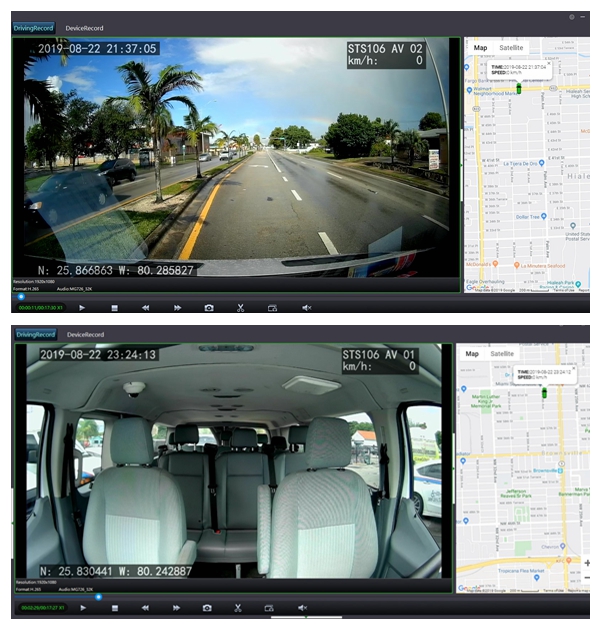

1080P Mobile DVR camera video Playback image quality



Product overview
Support AHD coaxial HD output, clear image , 960P/1080P
No delay, no compression, low consumption, real-time transimission
Common use in vehicle HD large monitor,super HD image display.

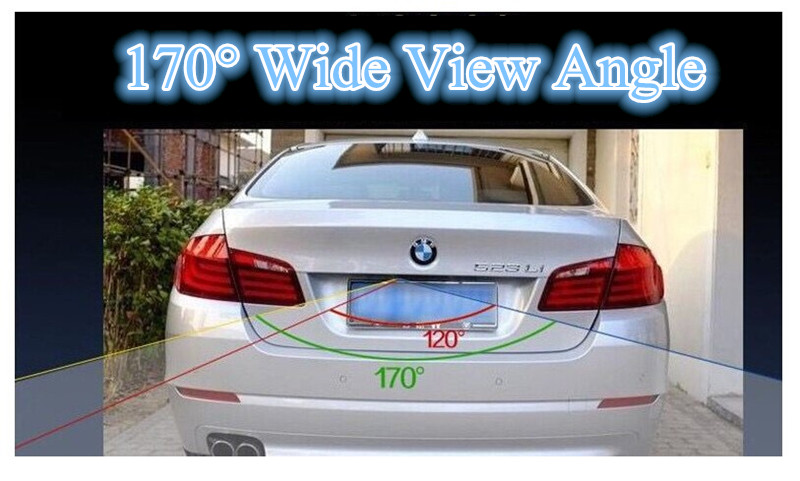

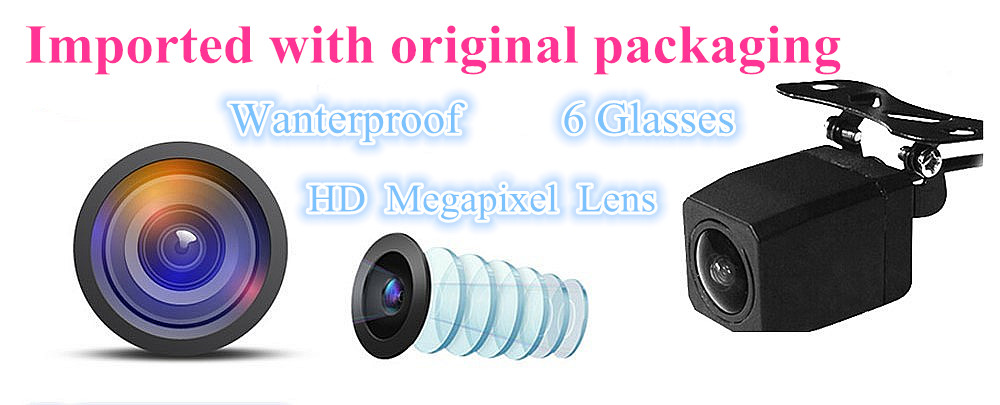

Lens imported with original packaging, super wide angle 148-180 ° ,no adjustment, no blind spot.
IP 68 waterproof grade, high reliability.
Technical parameters
Model EC258
Image sensor 1/3" progressive scan CMOS AR0130 (Star Light Sony225 with HD night vision function optional )
Horizontal resolution 1.3/2.0 Mega pixel
TV system PAL/NTSC
Effective pixel 1280(H)*960(V)/1920*1080
Low illumination [email protected](F1.2,AGC ON),0 Lux with IR
S/N Ratio 44dB
Auto Gain Control support
Back Light Comp support
White Banlance auto
Digital Noise Reduction  2D/3D-DNR
Electronic Shutter AUTO/1/501/60-150000Sec
Video output AHD VIDEO(960P/1080P)
Output connector 4Pin aviation head cable (Default)
Lens/Angle of view 1.78mm/H=150°,1.5mm/H=172°M12*P0.5
Waterproof grade IP68
Operating Temperature/Humidity -20°C~+70°C/ Humidity 90%(No condensation)
Power supply DC12V±10%
Power consumption 0.6W
Dimension 32*23.5*23.5
Applicationsuitable for private car,business purpose vehicle, mini bus etc.car rear view camera


Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days

Warranty: 1 year
