4 channel/8 channel 1080P MDVR with ADAS(Advanced Driving Assistant System)+ DMS(Driver Status Monitor Alert)+BSD(Blind Spot Detection)-Model: ES-D505

4 channel/8 channel 1080P MDVR with ADAS(Advanced Driving Assistant System)+ DMS(Driver Status Monitor Alert)+BSD(Blind Spot Detection)-Model: ES-D505

Driver Status Monitor Alert
Advanced Driving Assistant System
Driving Behavior Analysis
Driver Face Recognition
Product description: MDVR with ADAS (Advanced Driving Assistant System)+DSM (Driver Status Monitor Alert)Developed and manufactured by Eastyle Electronics,
INQUIRY

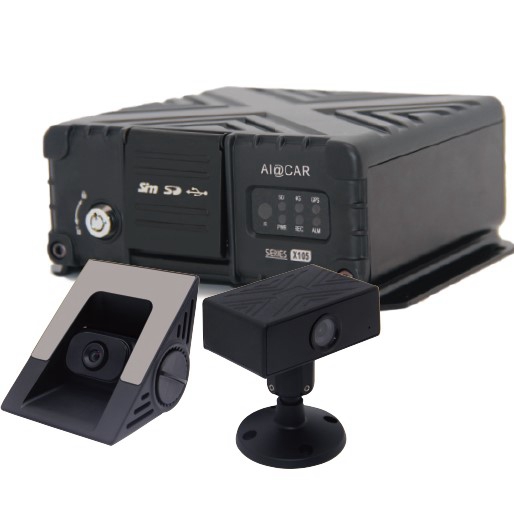

MDVR with ADAS (Advanced Driving Assistant System)+DSM (Driver Status Monitor Alert) +BSD(Blind Spot Detection)

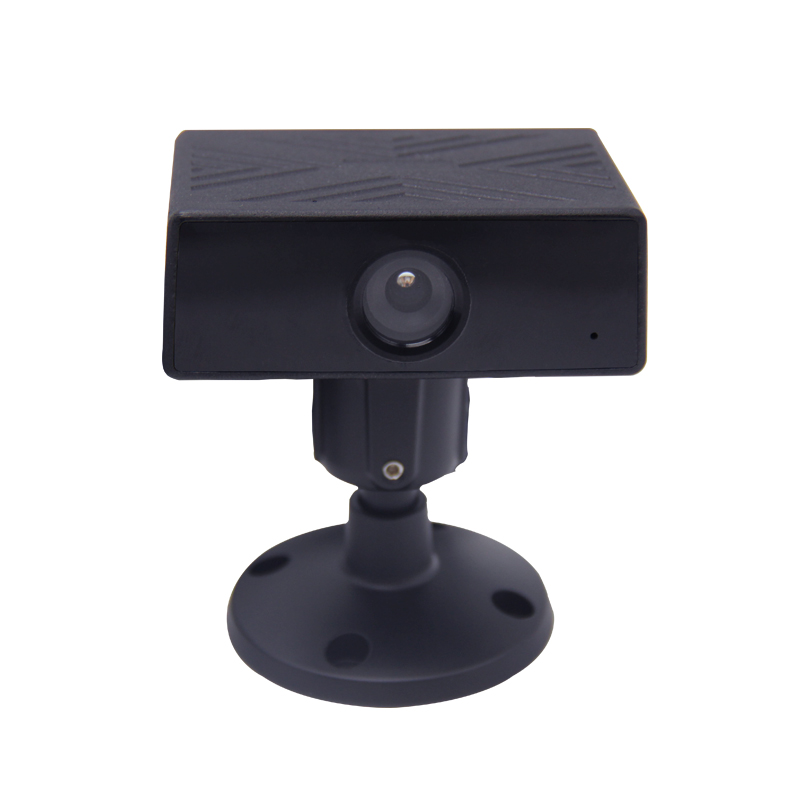

DMS Camera

ADAS camera

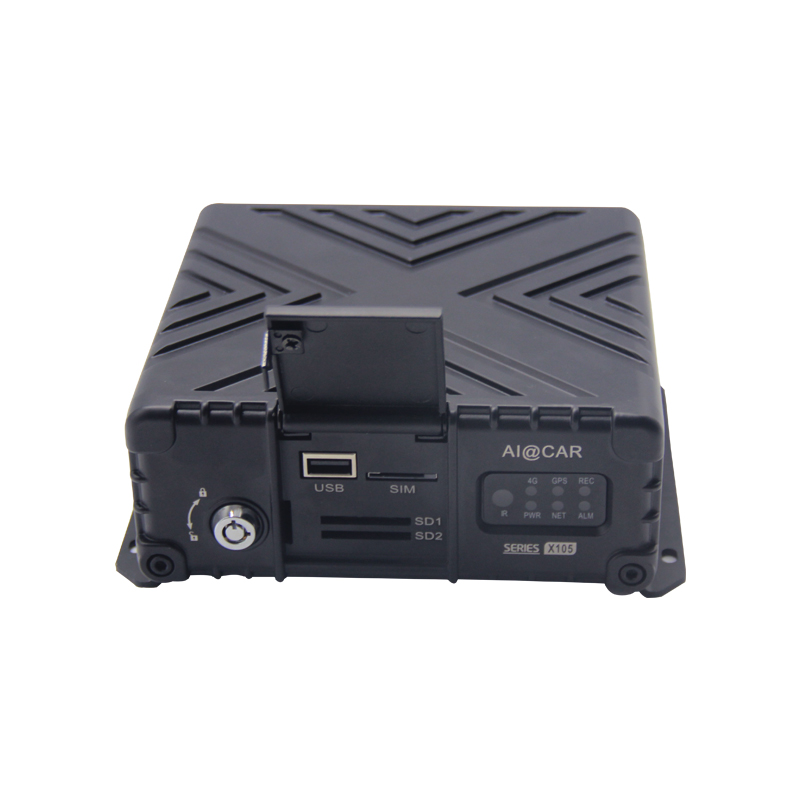

Product Overview

1.1 Product number：ES-X105

1.2.Product Name：ADAS+Driver Status Monitor Alert Host

1.3.Product Type：ADAS

1.4.Product Applications：When the vehicle is in motion, there is a potential collision, lane departure, or abnormal facial condition of the driver. The terminal equipment will provide sound early warning, local high-definition video recording, and vehicle management through the 4G mobile network in the background.

1.5Working Principle：Through artificial vision technology, the forward camera can identify vehicles, pedestrians and lanes in front of the vehicle, combine the speed of the vehicle, measure the relative collision time (TTC), provide anti-collision warning and lane departure warning; the face of the driver's camera can identify abnormal face, Once fatigue or abnormal posture is detected, the system will prompt the owner through voice and pay attention to driving safety.

Items	Parameter	ES-X505S
Host	OS	Android7.1
	Chips	Qualcomm
	Core	8 core ARM Cortex A53
	CPU	2.0G
	GPU	Qualcomm® Adreno™ 506 GPU
	RAM	2G
	ROM	16G
	Storage	1*SD，Max 512GB
	Extra Battery	Optional (Support extra UPS battery)
AI functions	Driver Face Recognition	Optional(need face camera to work with)
	ADAS	Optional(need ADAS camera to work with), Support calibrate the lane line automatically.
	Driving Behavior Analysis	Optional(need face camera to work with)

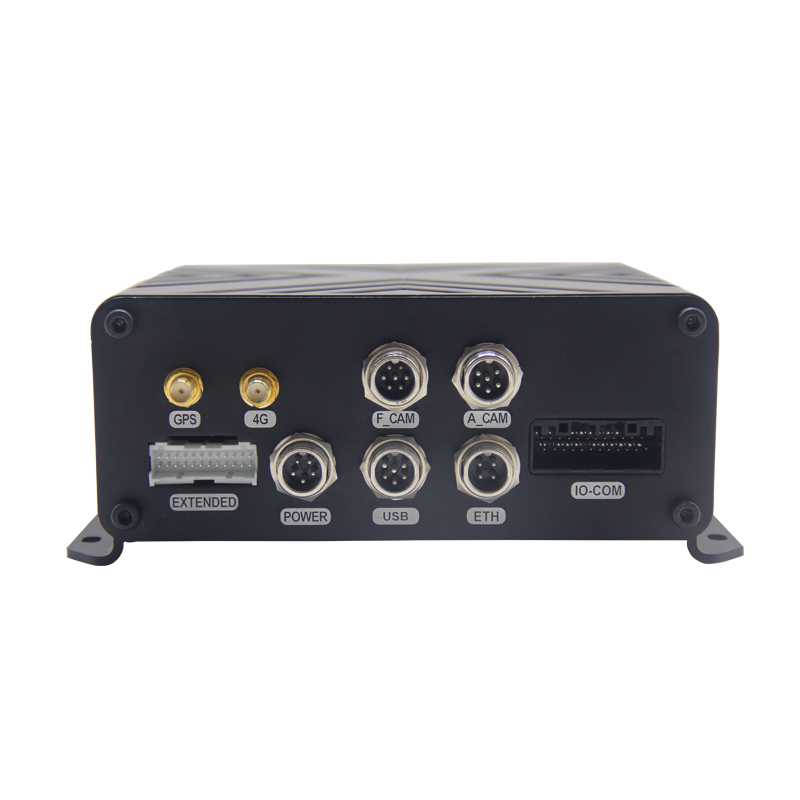

Interface	USB	USB3.0*1,support extra backup device
	I/O	4channels input/2 channels output
	CAN	3* CAN
	Output Power	12V（+/-0.2V），MAX:3A
	RS232 Serial Port	1*RS232
	RS485 Serial Port	1*RS485
	Network Port	1*, Support connect the 3^rd side external device
	Video Input	4 channels AHD 720P
	Video Output	HDMI output
	Video Compression	Compatible H.265/ H.264
Alarm	Voice Alarm	Support ( Customized voice alarm message is optional )
	Led Light	Support
	Extra Blue-tooth Devices	Support extra BT device alarm
	Remote Call Alarm	Support
	Alarm Bell/Siren	Support
Intercom	VOIP	Support（need face camera）
Storage	Internal Storage	Standard ROM 16GB to store event’s photo and video evidence
Storage	External Storage	512GB Max, support 4channels AHD Camera
Wireless communication	4G	Support dual 4G signal(4G full Netcom communication),Qualcomm® Snapdragon™ X9 LTE Modem
	WIFI	802.11ac
	Bluetooth	Bluetooth 4.1
GPS	Beidou/GPS	Internal Beidou/GPS module
Software update	This host supports upgrade via USB2.0 interface/SD card and platform remotely.
Working environment	Power	5W
	Working Voltage	DC8~36V
	Working Tem/Hum	-30℃～75℃/20~90%RH
Shape	Dimension	138 x 170 x 66mm
Shape	Weight	1kg

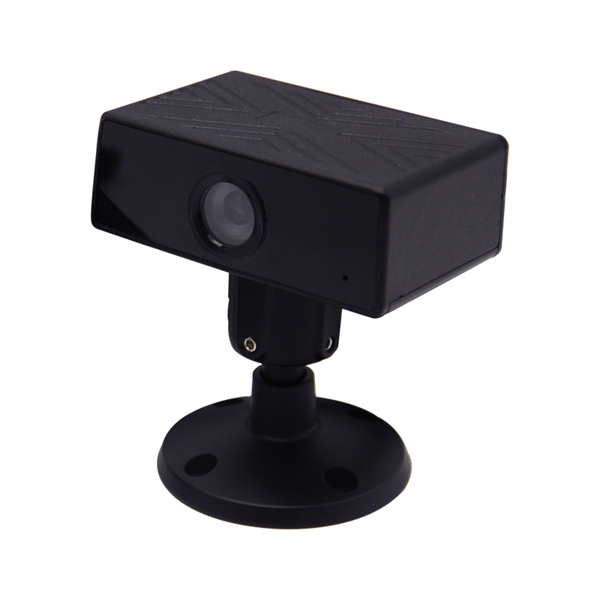

Model: DSM/Face Camera ES-X505S-F CAM

Type	Item	Parameter
Camera	Resolution	1280(H) x 960(V)
	IR	3M
	Illuminance	0.01Lux@（F1.2，AGC ON)
	Lens	4MM HD Lens
Alarm	Led Light Alarm	Different Light Alarm for ADAS & DSM events
	Voice Alarm	Support ( Customized voice alarm message is optional )
	Remote Call Alarm	To establish phone call alarm between fleet manager and driver via mobile phone APP
	VOIP Intercom	Monitoring center can have voice intercom with driver via iCTMS platform
	Installation Method	Screw / Double-sided tape

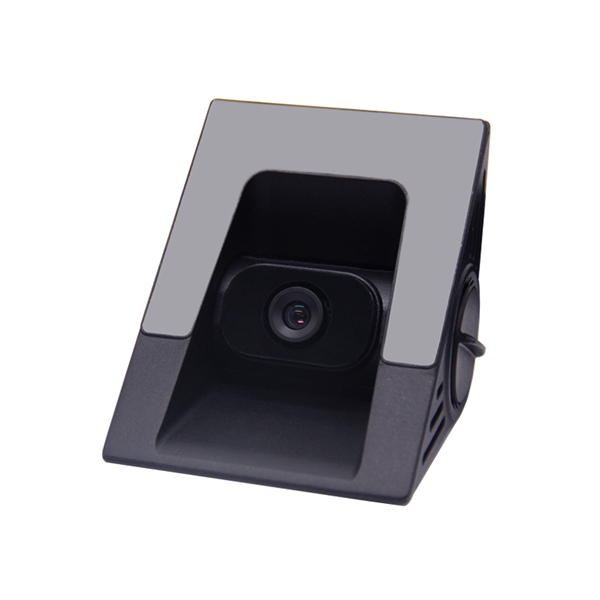

Model：ADAS Camera ES-X505S-A CAM

Type	Item	Parameter
Camera	Resolution	1280(H) x 960(V)
	WDR	Up to 115dB
	Lens	6MM HD Lens
	Illuminance	0.01Lux@（F1.2，AGC ON)
	Installation Method	Stick on windshield

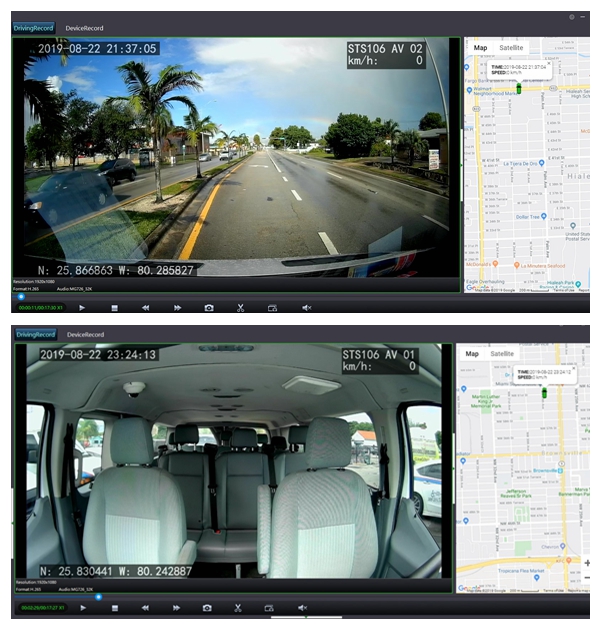

Playback Mobile DVR 1080P HD Image quality

How to playback records:

1. Take out HDD/SD card, connect to PC, then playback or backup records with our MDVRplayer.

2. Backup records to U-Disk from USB port. Then playback or backup on PC.

3. Download records from CMSV6 platform directly.

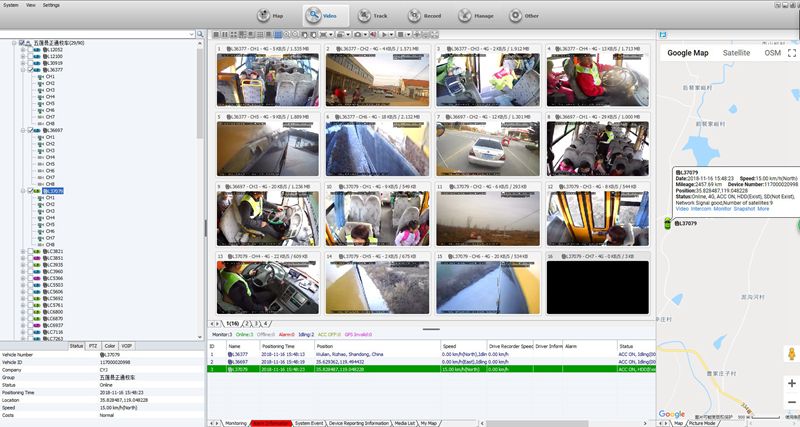

CMS fleet management platform online monitoring

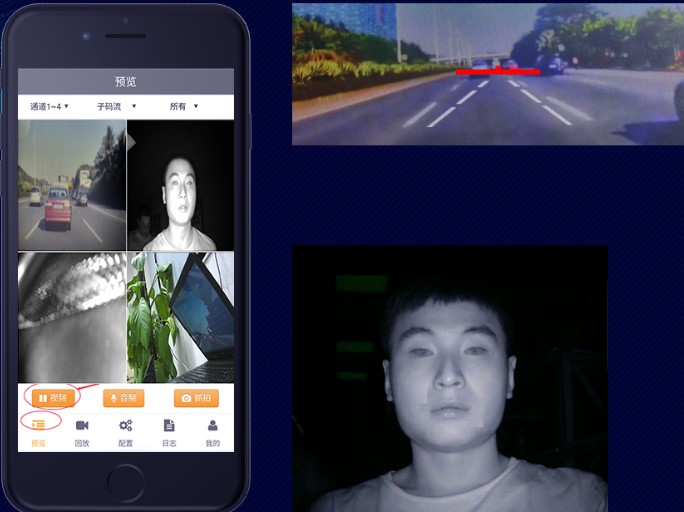

Mobile DVR work with professional fleet managment platform CMSV6, support PC Client software, Webpage client, mobile Android and IOS APP. It is very convenient to manage fleets, remote view live video and track position of all vehicles. Center people also can call driver and communicate with drivers by PTT speaker.

Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days

What is Warranty time and repairing service?

A: Warranty: 1 year
Life time maintenance and repairing service
We will continue to provide technical support and repairing service after warranty period.
