4 channel 1080P SD card Mobile DVR with GPS 3G 4G WIFI
Features:
Ÿ Built-in high performance Hisilicon chipsets, coded with H.264/H.265 standard, high compression rate and image quality.
It can save half of the storage, compared to H.264 compression.
Ÿ AHD/TVI/CVI/IPC/ANALOG five in one video input, wide compliance
Ÿ 4+1 live preview and storage
Ÿ 1CH synchronized AV output, 1CH VGA output
Ÿ Support UPS power input
Ÿ Built-in G-sensor, monitor the driving habits
Ÿ Reverse Assistance
Ÿ Adjust the Camera image horizontally and vertically
Ÿ Adjust the camera image 90 degrees
Ÿ Support GPS/4G/3G/WIFI/RJ45/G-SENSOR
Ÿ Support ultrasonic fuel level sensor
Playback Mobile DVR 1080P HD Image quality
How to playback records:
1. Take out HDD/SD card, connect to PC, then playback or backup records with our MDVRplayer.
2. Backup records to U-Disk from USB port. Then playback or backup on PC.
3. Download records from CMSV6 platform directly.
CMS fleet management platform online monitoring
Mobile DVR work with professional fleet managment platform CMSV6, support PC Client software, Webpage client, mobile Android and IOS APP. It is very convenient to manage fleets, remote view live video and track position of all vehicles. Center people also can call driver and communicate with drivers by PTT speaker.
Installation
Mobile DVR and cameras are suitable to install on all kinds of vehicles like bus, truck, car, taxi,ambulance, van, tanker, tow vehicles, trailer...
|
Video/audio input
|
4 channel
|
Voltage
|
DC 12V-36V
|
|
Video output
|
1ch Aviation+1ch VGA
|
Compression
|
H.264
|
|
Resolution
|
4ch 1080P/720P/960H
|
Certification
|
CE, RoHS,FCC
|
|
Storage
|
Max Support 256GB SD card
|
Warranty
|
1 year
|
|
Power input
|
+12V/24V, 2A
|
Work temperature
|
-40 -- 85°C
|
|
GPS
|
Optional
|
3G/4G
|
Optional
|
|
WiFi
|
Optional
|
G-sensor
|
Optional
|
|
IPC/RJ45
|
Optional
|
Size
|
142mm*152mm*32mm
|
Item
Device parameter
Performance
System
Main processor
Hi3520DV200
Operating system
Embedded Linux OS
Operating language
Chinese/English
Operating interface
GUI, Support mouse
Password security
User password/Admin password
Audio
&
Video
Video standard
PAL/NTSC
Video compression
H.265/H265+/H.264
Image resolution
1080P/720P /960H/D1/CIF
Playback quality
1080P/720P /960H/D1/CIF
Compound mode
4ch 1080P/720P/4ch 960H/2ch 720P+2ch 960H
Decoding ability
1080P/ real time
Recording quality
Class 1-6 optional
Image display
Single/QUAD display optional
Audio Compression
G.726
Audio recording
Audio & Video synchronized recording
Recording & Playback
Recording mode
Manual/Alarm
Video bit rate
Full frame 4096Mbps，6 classes image quality optional
Audio bit rate
8KB/s
Storage media
SD card storage
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Firmware upgrading
Upgrading mode
Manual/Automatical/Remote
Upgrading method
USB disk/Wireless network

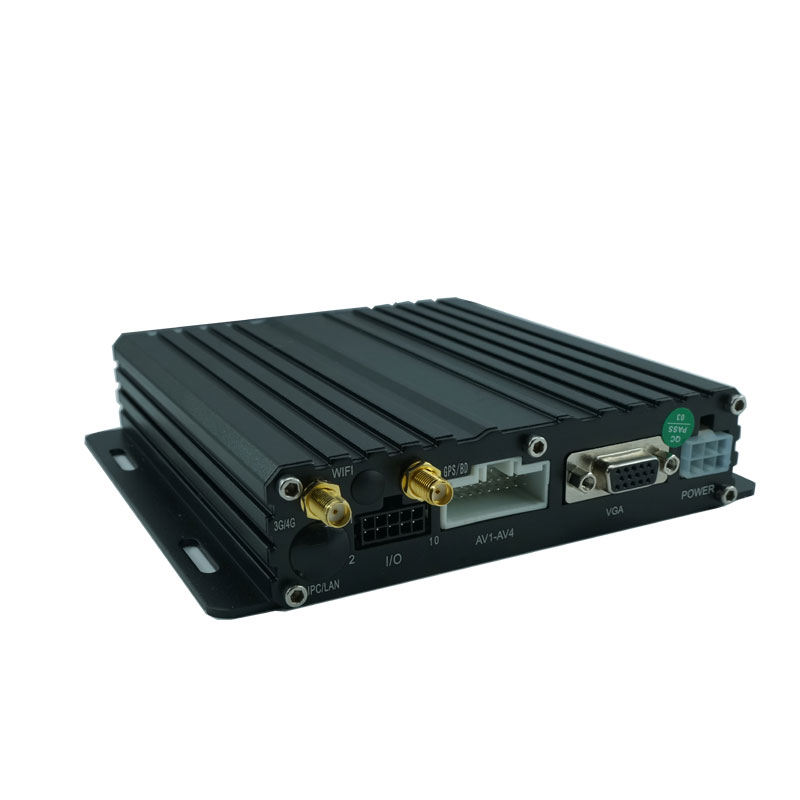

Interface
AV input
4ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (2 Positive trigger, 2 negative trigger)
SD card
1 SDXC High speed card (up to 256G)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level

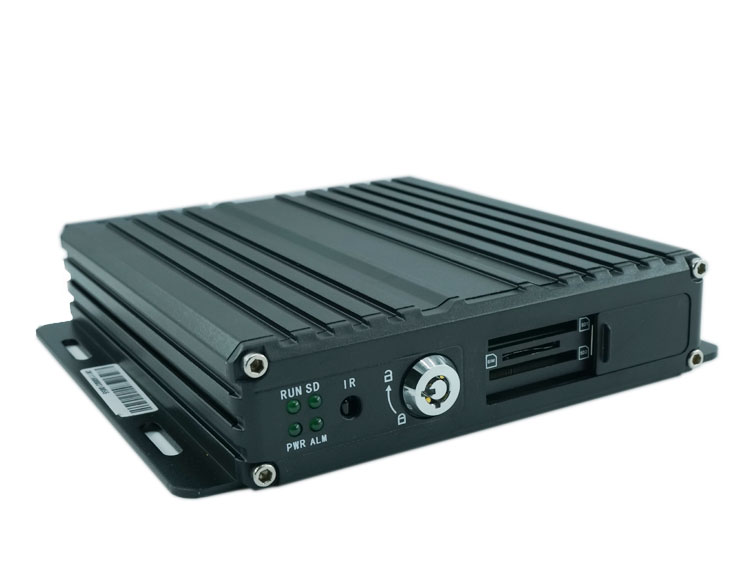

LED Indication
PWR/RUN/SD/ALM
SD card lock
1
Debug port
1
Function extention
GPS
Support detecting antenna Plug in/Unplug/Short circuit
WIFI
802.11b/g/n, 2.4GHz
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
Others
Power input
9~32V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption 18W @12V 1.5A @24V 0.75A
Working temperature
-20 --- 70℃
Storage
1080P 2G/h/channel
720P 1G/h/channel
960H 750M/h/channel
Delivery time:
sample order: 2-5 working days
10-100 kits: 7-10 working days
100-1000 kits: 15-20 working days
What is Warranty time and repairing service?
A: Warranty: 1 year
Life time maintenance and repairing service
We will continue to provide technical support and repairing service after warranty period.
