Vehicle PTZ camera

  • 2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles
  • 2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles
  • 2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles
2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles

2.0MP HD IR vehicle PTZ Camera for police cars and Law enforcement vehicles

  • vehicle PTZ Camera
  • 360 degree rotation
  • waterproof
  • 36X 2.0 mega pixels
  • Product description: 20x Zoom 2.0MP HD IR vehicle PTZ Camera for monitoring system
  • INQUIRY

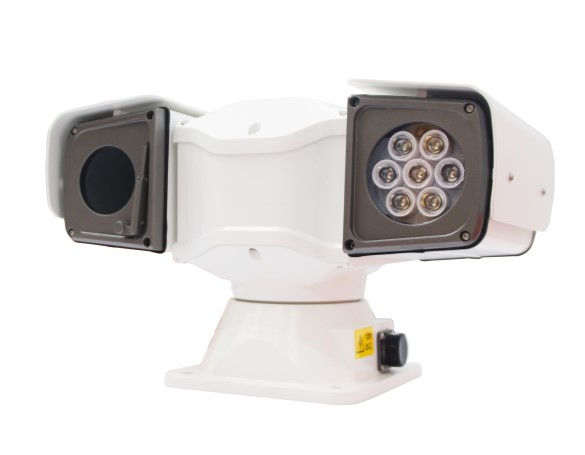

2.0MP HD IR vehicle PTZ Camera




Product Description


2.0MP HD IR vehicle PTZ camera for monitoring system


This vehicle mini IP PTZ camera is available 2MP 18X, 2MP 20X and 2MP 30X optical zoom. And it is mostly mounted on top/roof of police car, police vehicle, police truck, military car, military vehicle, patrol car and patrol vehicle with mounting bracket or magnetic base.



1,It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
2,It applies full digital control, flexible programming, drive line compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.
3,The maximum resolution to support 1080P@30fps
4,Supporting dual stream and HD capture
5,Supporting variety of HD Platform connection
6,It can be used on car surveillance.DC11V-DC18V
7,Weatherproof design, high die-cast aluminum casing,work temperature:-35℃~+55℃.,with sun-shield housing and wiper
With infrared LED range up to 100 meters ,it could catching image promptly at night.
8,360°Continuously rotation ,upward angle +90°~ -90°,no blind spot.
9,Pan preset speed 100°/S,tilt preset speed 80°/S,with 256 preset positions,6 cruising tracks.
10,Can be set to auto-cruise, horizontal scanning, the camera mode and displays the title.
11,PTZ coordinates, the lens magnification display function.

12,Car-surveillance shock absorber for optional.

Part NO.
ES130GR
Pan preset speed
120°/S(manual contro0°~80°/S)
Tilt preset speed
60°/S(manual control 0°~40°/S)
Pan range
360°
Tilt range
+90°~-90°
Electric machinery
stepping motor (worm and gear)
Preset positions
256 Preset positions
Control Way
RS485(Ntwork and SDI support RS485 and RJ45
Baud rate
2400Bps~19200Bps
Control protocol
Pelco-D/Pelco-P
Chroma
850nm
Distance
120m
Audio input/output
Support
Alarm Input/ Output
Support
Operating temperature
-35°C~+65°C
IP Grade
IP66
Power Supply
DC10.5V~DC16V(6A)
Weight
3KG(net weight)
IP(Network)Chipset
Model
20IP
30IP
Imaging sensor
1/2.8inch “Exmor”CMOS
1/2.8inch“Exmor”CMOS
Effective pixels
2.1 mega pixels
3 mega pixels
Lens
20X optical zoom f=4.7 -94.0mm (18.20.30X)
Min.illumination
0.095 lUx (F1.6,ICR open)
Frame rate
25FPS & 30FPS
Double stream
H.265/H.264
SDK Docking
standard ONVIF protocols,Support SDK two development
SDI/AHD Chipset
Model
SDI
AHD
Imaging sensor
1/2.5inch CMOS
1/4inch CMOS
Effective pixels
30X 3 mega pixels(According to chipset)
36X 2.0 mega pixels(According to chipset)
Frame rate
60FPS & 30FPS
30FPS





1080P Vehicle PTZ camera image quality

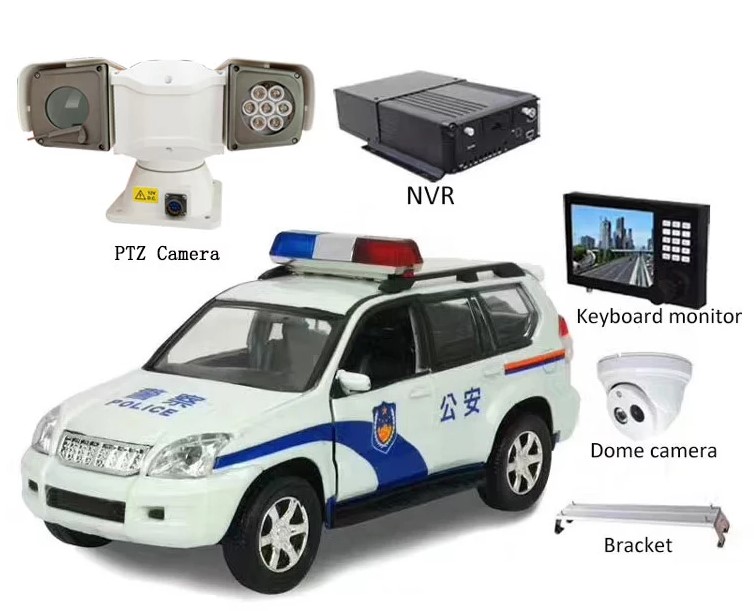

Vehicle PTZ camera application on Vehicles



Vehicle PTZ camera Production workshop


Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days

Warranty: 1 year

Lifetime maintenance and repair
