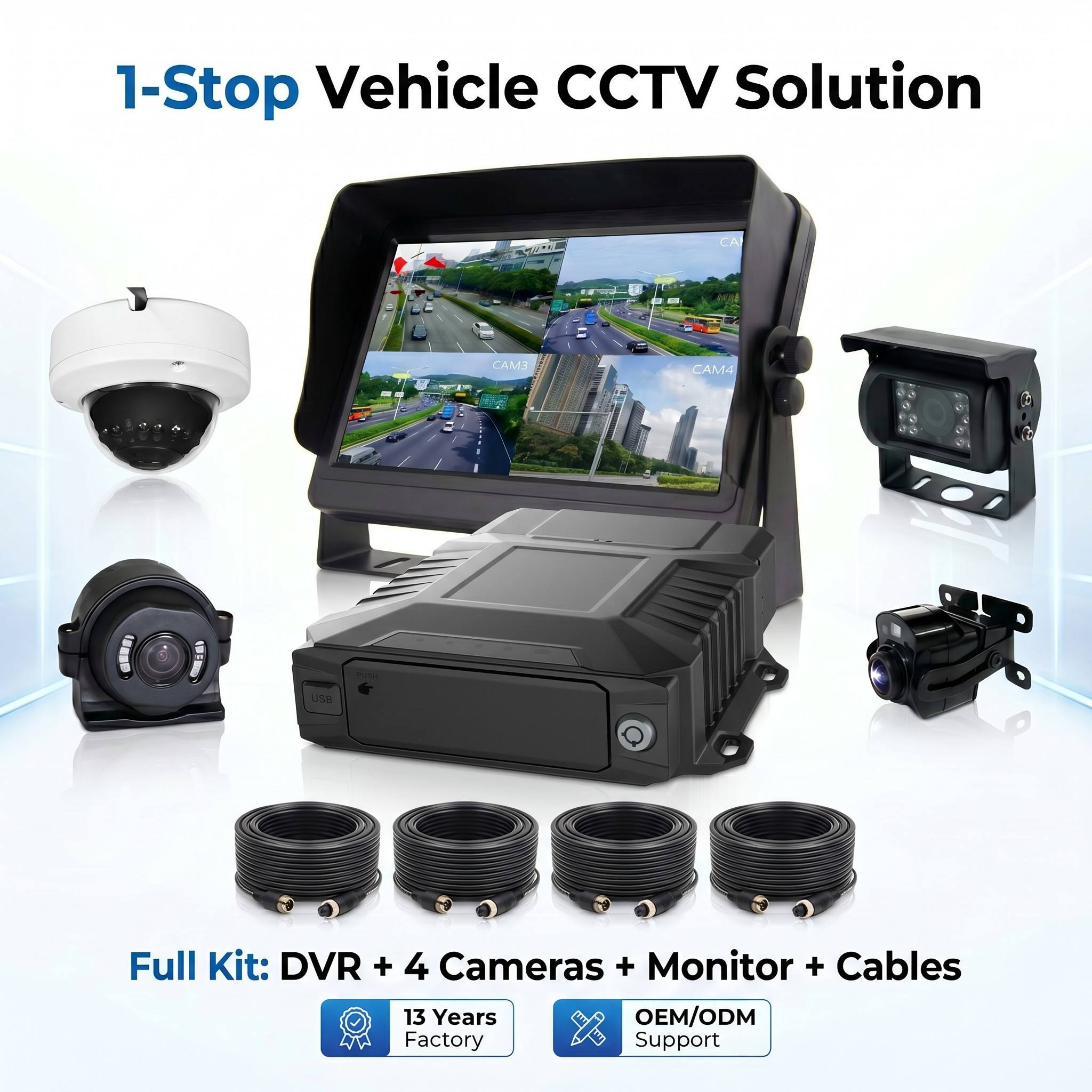

8 channel 1080P AI Mobile DVR with ADAS DMS BSD APC-Model: ESM518
ES-M518AW is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 4G network, GPS/BD and WIFI. It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.
a) Adopt high performance CPU, core ARM Cortex A7 dual core @max.1.3GHz, making the system run faster and more stable.
b) Vehicle-specific interface with good user experience.
c) The recording resolution is up to 1080P, using the latest H.265 digital encoding technology, high coding efficiency and flexible strategy.
d) Supports the AP direct connection function, which can be directly connected to the device through the mobile phone APP to perform parameter setting and other functions on the phone.
e) Supports a 2.5-inch HDD/SSD. The hard disk access mode is bare disk plug-in type. There is no need to add a hard disk box. The hard disk is removed from the pop-up mode. The whole operation is simple and easy to use.
f) The hardware design has a power-off protection function. When the device suddenly powers off, the built-in super capacitor can be enabled to achieve normal shutdown, effectively avoiding the loss of key data.
g) Built-in G-sensor accelerometer, adaptive installation position, no need to manually set, support driver driving behavior detection.
h) All-aluminum alloy case, fanless design, with good heat dissipation.
a) Turn on/off
a1 Support ACC ignition power on, regular power on, trigger boot, remote boot.
a2 Support ACC delay shutdown, timed shutdown, trigger shutdown, remote shutdown.
b) Local monitoring function
b1 Support local output 1/2/4/5/8 screen live preview, trigger single channel screen preview by alarm.
b2 Support motion detection, video loss, video power short detection detection.
b3 Support local audio and video playback, support fast forward and rewind function.
c) Local audio and video recording storage
c1 Support a 2.5" SATA hard drive and a SD card.
c2 The file format is compatible with Windows systems and uses hard disk space pre-segmentation.
d) Data backup
d1 Support USB data export backup.
d2 Support bare disk pull out data backup.
d3 Support remote platform data download backup.
e) Extension
e1 Local support for RS485, support for a variety of peripheral sensor access.
e2 Local support for RS232, support for a variety of peripheral sensor access.
e3 Support for external serial port expansion boxes.
f) Remote monitoring function
f1 Support 10M/100M adaptive network interface.
f2 Support 4G function.
f3 Support WIFI function, 2.4/5.8G optional.
f4 Support VMS, CMSV6 platform, provide SDK, and access more platforms.
f5 Supports protocols such as DHCP, DNS, NTP, and SADP.
f6 Support remote preview and video recording.
f7 Support remote video and audio playback.
f8 Support WIFI automatic download.
f9 Support remote intercom between platform and device.
f10 Supports PTT calls between devices and devices.
f11 Support remote acquisition and configuration parameters, support remote export and import of device parameters.
f12 Support remote access to device operating status, system log and alarm status.
f13 Support remotely format hard disk, upgrade program, restart and other system maintenance operations.
f14 Support remote search, playback and download.
f15 Support RS-232 remote transmission.
|
Item |
Description |
|
|
Model |
ES-M518AW |
|
|
OS |
Linux3.18 |
|
|
Operating |
Cell phone APP, PC client, Remote controller |
|
|
Functions Summary |
Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition. |
|
|
Video and Preview |
Video Input, Output,Signal standard |
AHD input:8ch 1080p/15fps,8ch 720p/30fps,8ch D1/30fps,4ch 1080p/30fps. IPC input:1ch default, externally expandable 1-4ch Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc. |
|
|
Video Compression Format |
Compression coding. Applying H264/H.265 hi-performance processor. |
|
|
Image quality |
Code stream, frame rate optional |
|
|
Preview |
1/4/6/8/9 channel preview |
|
|
Resolution |
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M D1:30fps/512K/1M/2M IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M |
|
|
Audio |
Audio Input, Output |
8ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ |
|
Compression Format |
G.711A, G.726 |
|
|
Recording |
Storage Medium |
Supporting one 2.5” SATA hard drive and one SD card |
|
Video Strategies |
Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
|
Alarm pre-recording |
0-60min |
|
|
Alarm recording delay |
0-30min |
|
|
Playback channel |
Support local 1/4/6/8 channel playback |
|
|
Browse mode |
Time, channel, event. |
|
|
Communication Ports |
RS232, RS485 |
|
|
ADAS |
Built-in (Optional) |
|
|
Wireless Transmission |
4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect. Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M) |
|
|
Position |
GPS/BD: Positioning, speed detection, time synchronization |
|
|
Power Supply and Power Consumption |
Power Supply |
1ACC on/off |
|
Input Voltage |
DC:+8V ~ +36V |
|
|
Output Voltage |
+12V@1A; +5V@1A |
|
|
Power Consumption |
Max 25W consumption, about 0W in standby mode |
|
|
Operating Environment |
Temperature |
preheating: -20℃ ~ +70℃ |
|
Humidity |
8% to 90% |
|
|
Size |
176.9mm（L）*186.8mm（W）*54mm（H） |
|
|
Weight |
NW:1.4KG GW:2KG |
|
Delivery time:
sample order: 2-5 working days
10-100 kits: 7-10 working days
100-1000 kits: 15-20 working days
What is Warranty time and repairing service?
A: Warranty: 1 year
Life time maintenance and repairing service
We will continue to provide technical support and repairing service after warranty period.
