Mobile DVR

4 channel 1080P mini AI MDVR with GPS 4G WiF support ADAS DMS BSD -Model: ES-M515

4 channel 1080P mini AI MDVR with GPS 4G WiF support ADAS DMS BSD -Model: ES-M515

AI MOBILE DVR
ADAS
DMS
Blind Spot Detection
Product description: 4 channel 1080P mini AI MDVR with GPS 4G WiF support ADAS DMS BSD
INQUIRY

Product Description

4 channel 1080P mini AI MDVR with GPS 4G WiF support ADAS DMS BSD

Features

Support driver fatigue driving alarm (eyes closing fatigue, yawning fatigue).

Support receive and call the hand-held phone alarm.

Support the driver without watch the front alarm.

Support the driver not in the driving position alarm.

Support drivers smoking recognition alarm.

Support device block failure reminder.

Support forward collision warning, and warn the driver when the collision

time with the preceding vehicle is less than 2.7s.

Support safe distance warning, when the vehicle is approaching the set

distance (calculated in seconds), this function will issue a dangerous alarm.

Support lane departure warning, alert the driver when the vehicle deviates

from the lane line unconsciously.

Supports alarm classification based on the GPS/BD positioning speed, or

pulse speed, or OBD speed provided by MDVR.

Supports automatic adjustment of the optimal state of the algorithm

according to the MDVR input speed limit threshold.

Support the calibration height setting input by MDVR, and automatically

adjust the optimal state of the algorithm according to the height.

The intelligent channel AHD adopts aviation connector interface design.

Intelligent chip, high-performance DSP image processor.

A set of system supports both ADAS & DSM intelligent algorithm and

department standard function.

Supports Main stream, but don’t support dual stream.

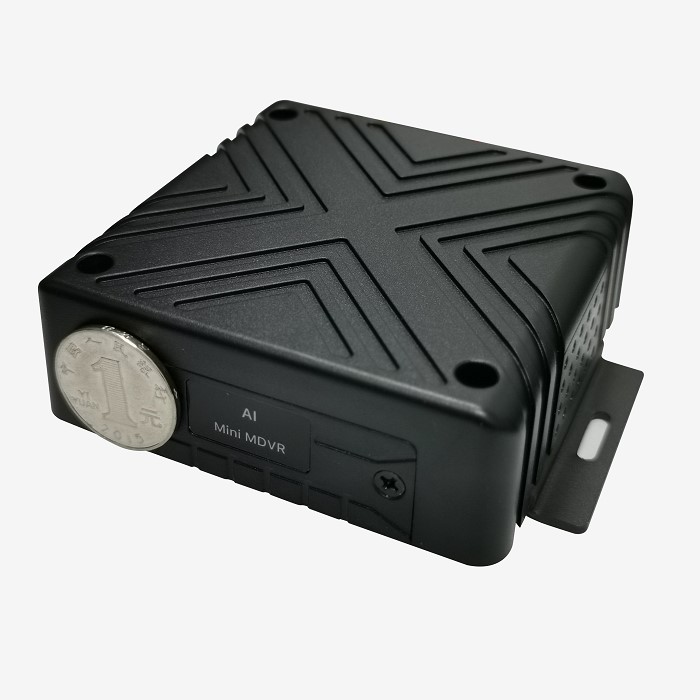

Small Size

ppt adas 1.png

ADAS

DMS

CMS fleet management platform online monitoring

sd card <a href=http://www.eastyletech.com/en/Mobile-DVR.html target='_blank'>Mobile DVR</a>

Playback Mobile DVR 1080P HD Image quality

playback01

Product Detail

Device Model	ES-M525
Operating System	Liunx3.10
Language	Chinese / English
Hardware Platform	FH
Video Encoding	H.265/H.264 compatible
Audio Coding	G.711A
Gravity Sensor	3 Axis Gyroscope
Position	Support GPS/BD dual mode, optional support for high-precision positioning
Mobile Network Standard	4G
WIFI	Optional, support built-in WIFI module, 2.4G 802.11b/g/n
Video Input	4-channels AHD1080P/720P
Video Output	1-channel CVBS HD output
Audio Input	4-channels Input
Audio Output	1-channel Output
Storage	TF*2,Support 512GB
Antenna	4G antenna built-in
	External GPS antenna
	Optional, built-in WIFI
VOIP Intercom	Support
Switching Volume	4-channels inputs / 1-channel output
Power Consumption	Less than 3W
Input Power	Wide power supply design, support DC9~36V
Dimension	90mm90mm30mm(L×W×H)
Weight	Net weight of host 295g

Delivery time:

sample order: 2-5 working days

10-100 kits: 7-10 working days

100-1000 kits: 15-20 working days

What is Warranty time and repairing service?

A: Warranty: 1 year
Life time maintenance and repairing service
We will continue to provide technical support and repairing service after warranty period.
